Additional Scheduling

There are two backup types available that are optional and can be disabled. Click the Edit option to configure the backup schedule.

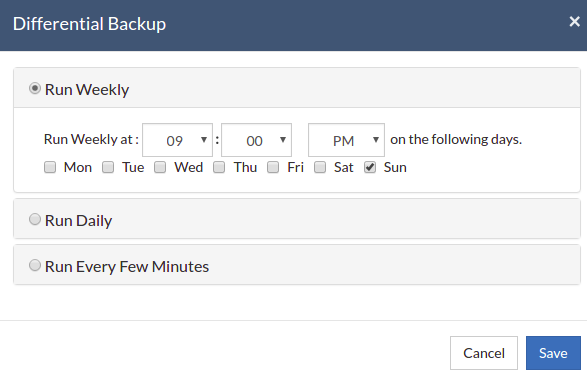

Differential Backup

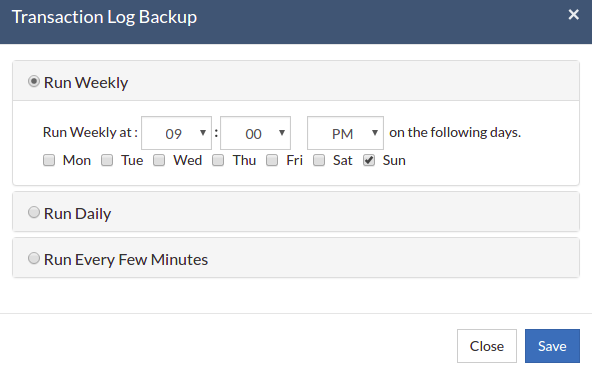

Transaction Log Backup

Based on requirements edit these additional settings, but make sure this additional scheduling stays less than full backup schedules.

Note: You cannot assign the same time for both the full backup schedule and an additional schedule

Differential- NetworkBackup Client will do a Differential Backup dump of the database with respect to the previous full backup whenever this Differential Backup is scheduled. Configuring this step is optional

Transactional Log- NetworkBackup Client will do a Transaction Log Backup dump of the database with respect to the previous backup (Full/Differential/Transaction Log) whenever this Transaction Log Backup is scheduled. Configuring this step is optional

Note: The Transaction Log Backup is not supported for Simple Recovery Model databases

Scheduling

Run Weekly- This option lets you select the day and time of a week to run the scheduled backup. You can additionally select more than a day in a week for the schedule.
Run Daily- This option allows you to trigger the backup in a specific time frame daily.
Run Every Few Hours- This option lets you decide the period in which backup schedules should be carried out. Additionally, you can configure the days in a week and decide when to and when not to backup.

Note: If you have selected Run Daily for full backup and Run Weekly option in differential backup then your selection will not be valid. Select Run Daily or Run Every Few Minutes options

Temporary location for backup dumps

Enter the location/directory path in which the MS SQL dumps have to be temporarily stored, before uploading to the backup server. Ensure you have enough disk space in the configured location(where the backup dump has to be saved).

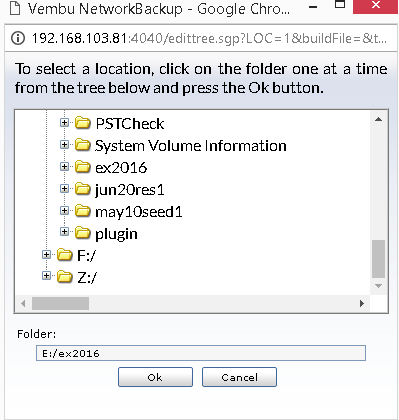

Select the location to which the dump must take place from the window as displayed below. The dump location you have configured will be mentioned in the Folder tab. Click OK to finalize your dump location.

Note: Backup dumps stored in a temporary location will be deleted once the backup dumps are transferred successfully to the remote backup server

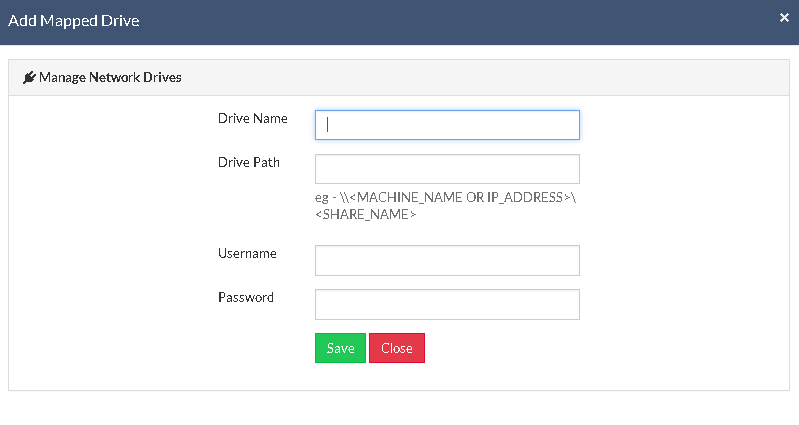

Add Mapped Drive

There may be situations in which you may not have enough space to allocate for the dump process. In such cases, you can add a mapped drive by providing the drive name, drive path, username, and password. From there on the dumping process will happen to the configured drive only.
The drive path must be in the following format: \\<MACHINE_NAME OR IP_ADDRESS>\<SHARE_NAME> make sure you give the correct details else you will get the status "Mapping the drive letter to the UNC path failed with the error: The network path was not found."
Ensure you provide proper credentials, if not the message "Mapping the drive letter to the UNC path failed with the error: The specified network password is not correct" will appear. Click Save to complete the process.

Note: If the drive you have configured already exists or you have already mapped that drive to a UNC path, you will get the following message "C:/ drive already exists or mapped to a UNC path. Please choose a different drive letter

Encryption Setting

Backups configured under NetworkBackup Client can be encrypted with a user-defined password which can be provided during backup configuration.

Steps to add Encryption Password

To encrypt your backup, select Enable Encryption check-box. You can either add your own password or encrypt the backup with a System Generated Password.

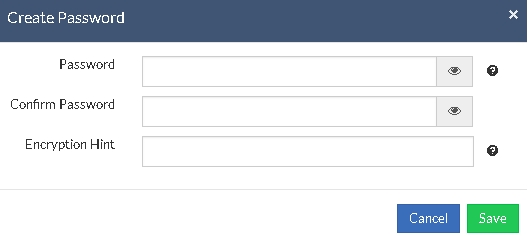

To create a new password, click on Add Password. Provide the password of your choice along with a password hint and save it

The newly created password will be available in the drop-down list. Choose the password and click Next. All the added passwords will be listed in the drop-down box. With the help of the encryption hint, you can easily identify the required password. Click Save once you have provided the required details.

Note: By default, NetworkBackup Client uses the system-generated password to encrypt backups even if Encryption is disabled. You can opt for a custom password for extended data protection and you will be required to provide it during recovery. Opting to the custom password will disable integrity check from being performed automatically

Note: Password and its hint should not be the same to avoid security issues. The password should contain at least a character, a number and a special character [! @ # $ % ^ & *] .Encryption hint should be at least 6 characters and not more than 25 characters. Encryption hints are unique and no two passwords can have the same encryption hint

Once you have completed configuring Encryption Password, click Save
