BDR Client Authorization

BDR Client Authorization feature generates a unique passkey for the servers which allows only the authorized clients to get connected with BDR Backup Server using the registration key.

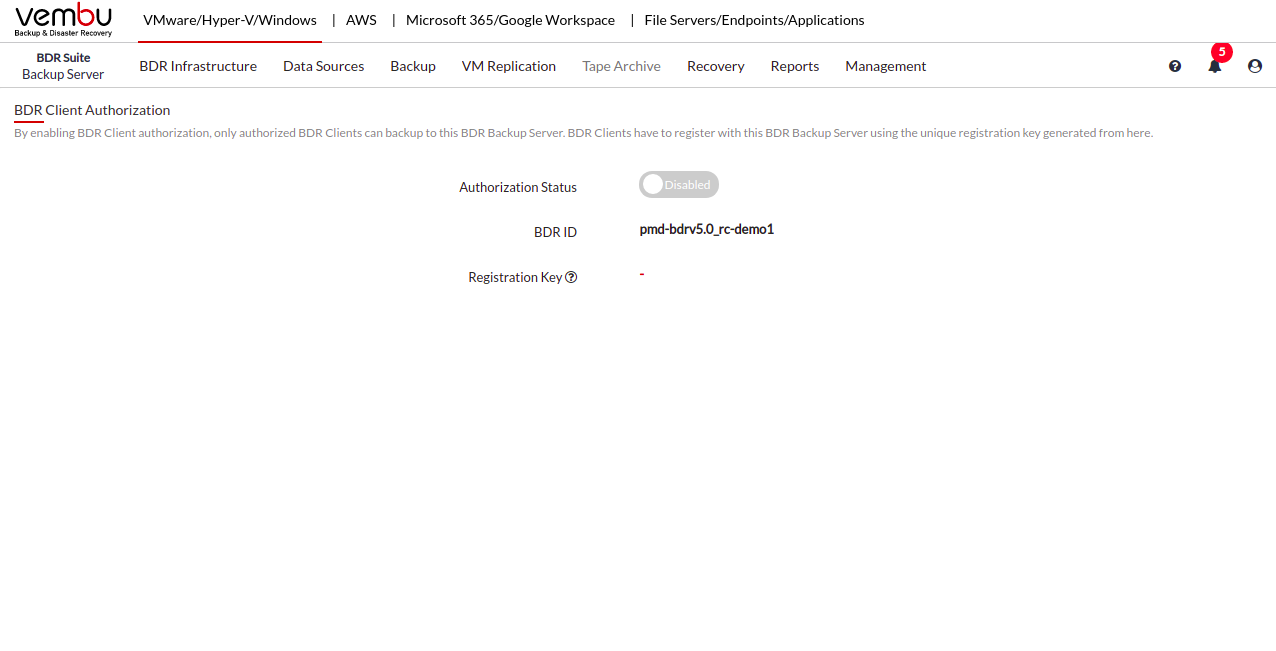

  1. From the Data Source tab, navigate to Manage BDR Clients and then choose the BDR Client Authorization option. By default, the BDR Client Authorization will be disabled.

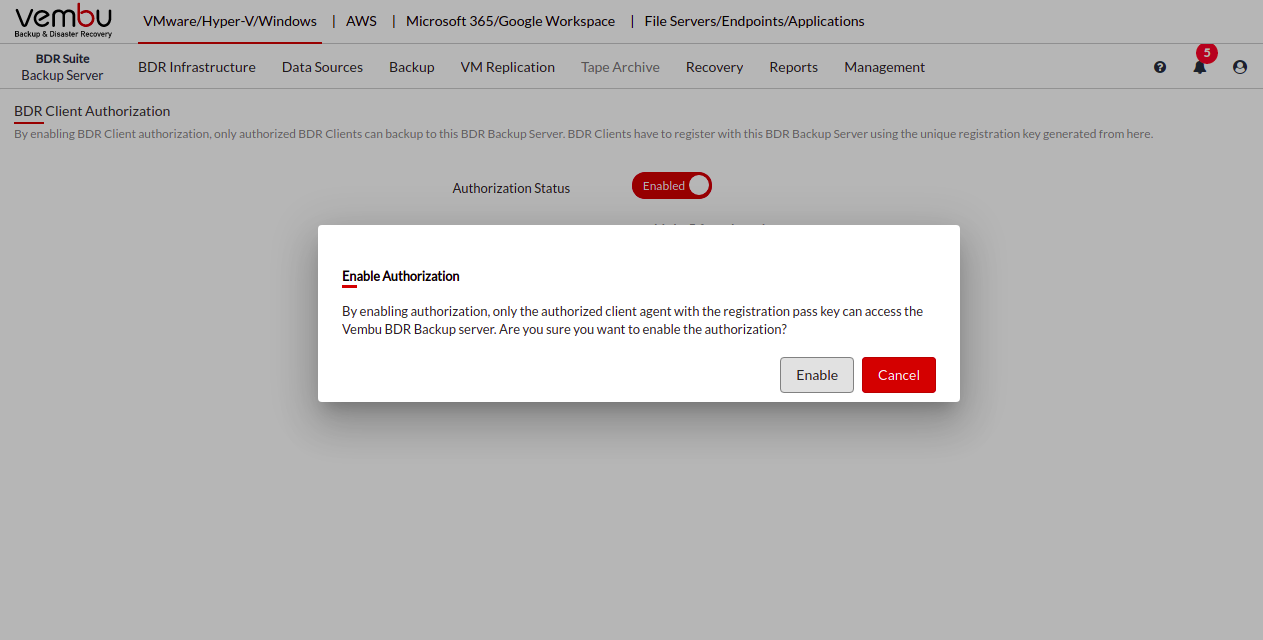

  • Toggle the button to enable the Authorization Status

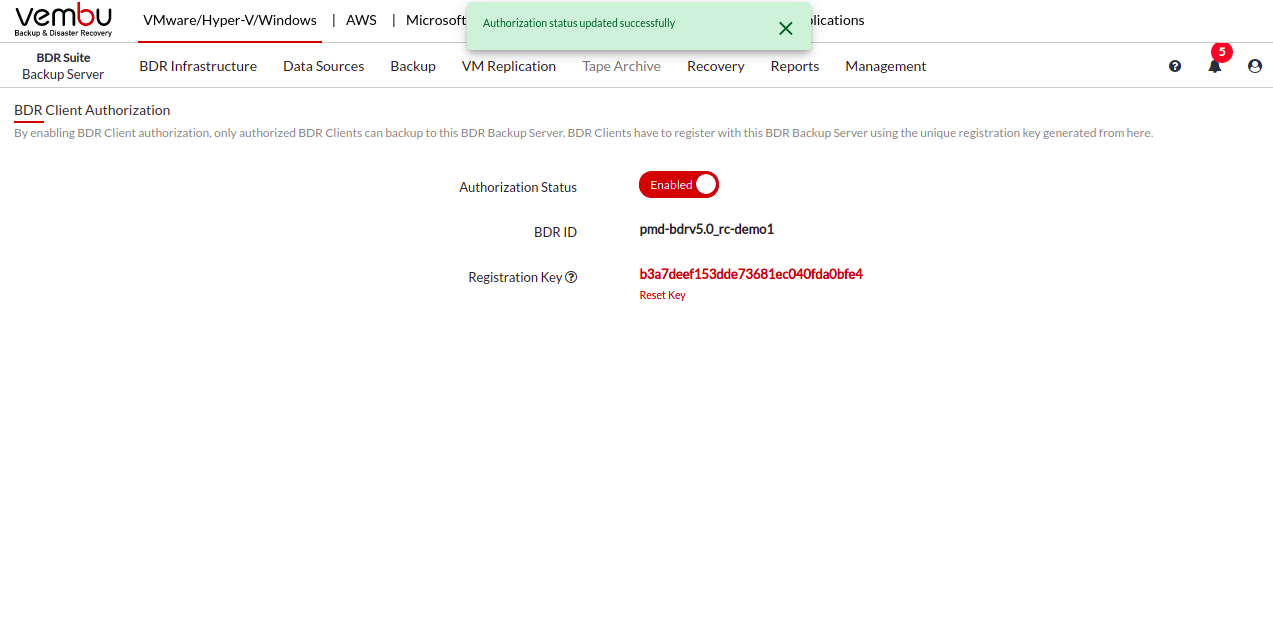

  1. On enabling the feature, a registration key will be generated which should be provided by the clients while adding the backup server (setting up clients or during the backup configuration), for authorization.

  • This registration key has to be used by all the clients to access the BDR Backup Server
  • In order to disable the Authorization Status, you can toggle the button again.

  • By clicking on Disable you choose to enable the clients to access the BDR Backup Server without any registration key.

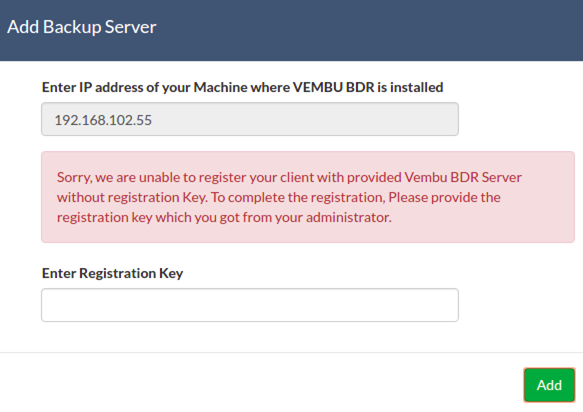

  1. Below is an example of adding the backup server to a client using the registration key.

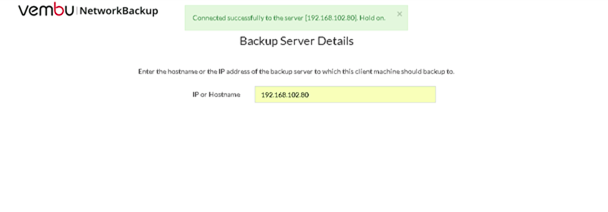

  1. The backup server is added successfully with the provided registration key to NetworkBackup Client as shown below:

Information Note:

  • When Authorization is disabled, clients do not require an authorization key to add a backup server.
  • You can also reset or regenerate the registration key using the Reset Passkey option. The new key will not affect the clients which are added with the old passkey and every new client to be added should provide the newly generated registration key to add a backup server.
  • In case of having authorization enabled and group passkeys as well (Refer: Create New Group), you can use anyone to add the backup server to setup client where:
    • Group passkeys add clients directly under a specific group created in a backup server.
    • The registration key adds the client to a backup server.
