Restore Backup Data

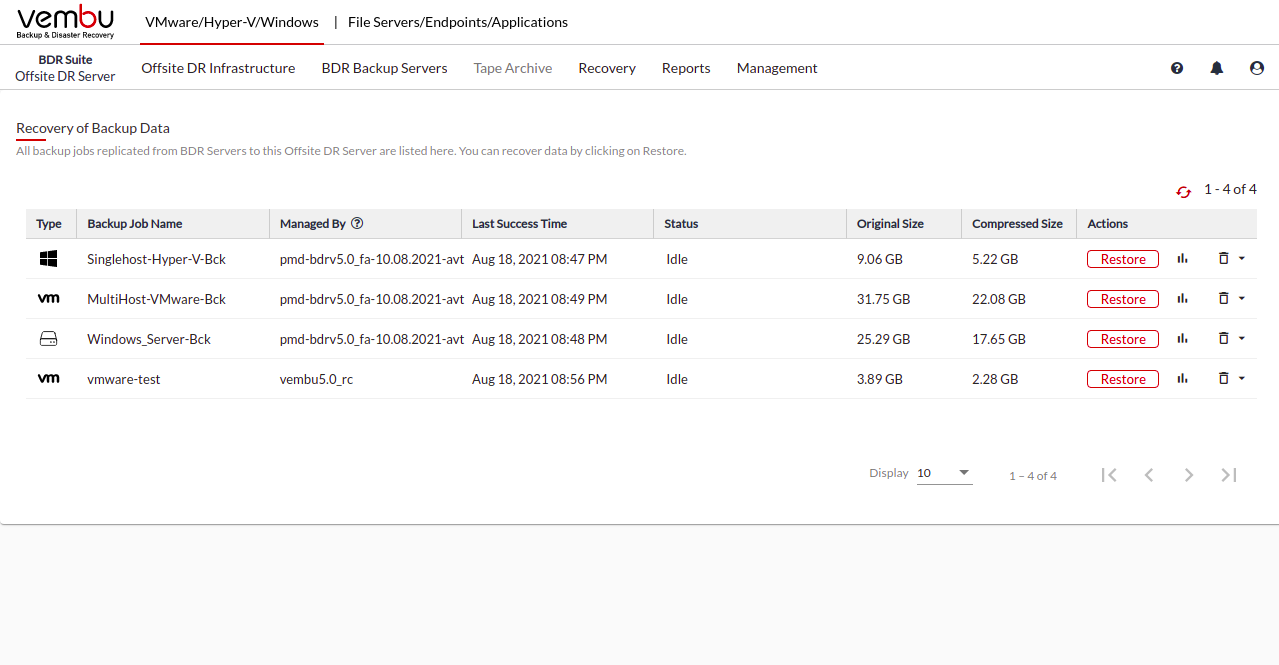

From the Offsite DR Server, Click on the Recovery tab and click on Restore Backup Data. All the replicated backup jobs from the BDR Backup Server will be listed with the below details like the Backup Job Name, Managed by, Last Sucess time, Status, Original size, and Compressed Size and with the following options.

  • Restore
  • Reports
  • Delete

Restore

  • Selecting this option will lead you to select the restore type

Information Note:

The Restore symbol is hidden or greyed-out due to following reasons

  • If the backup selected for restore is currently in backup progress.
  • If the replication process is active for the backup that is selected for restore.
  • If the full backup of the selected backup job fails to complete.
  • If the backup selected for restore is already processing a Restore job at that moment.

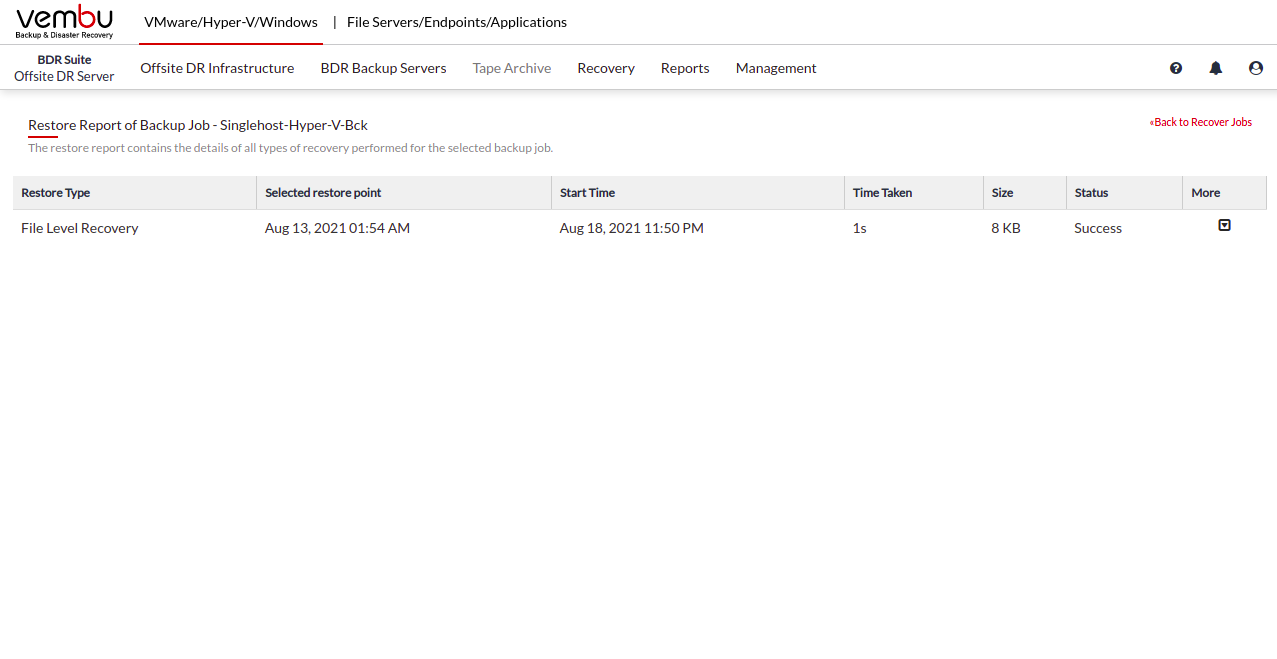

Restore Reports

Delete

  • To Delete jobs click on the drop-down list which lists you to delete the following - Delete Persistent Boot Data, Delete Full Backup Data & Delete All Backup Data
  • To delete the persistent boot data of VMs click on the Delete Persistent Boot Data option in the drop-down list alongside the respective job.

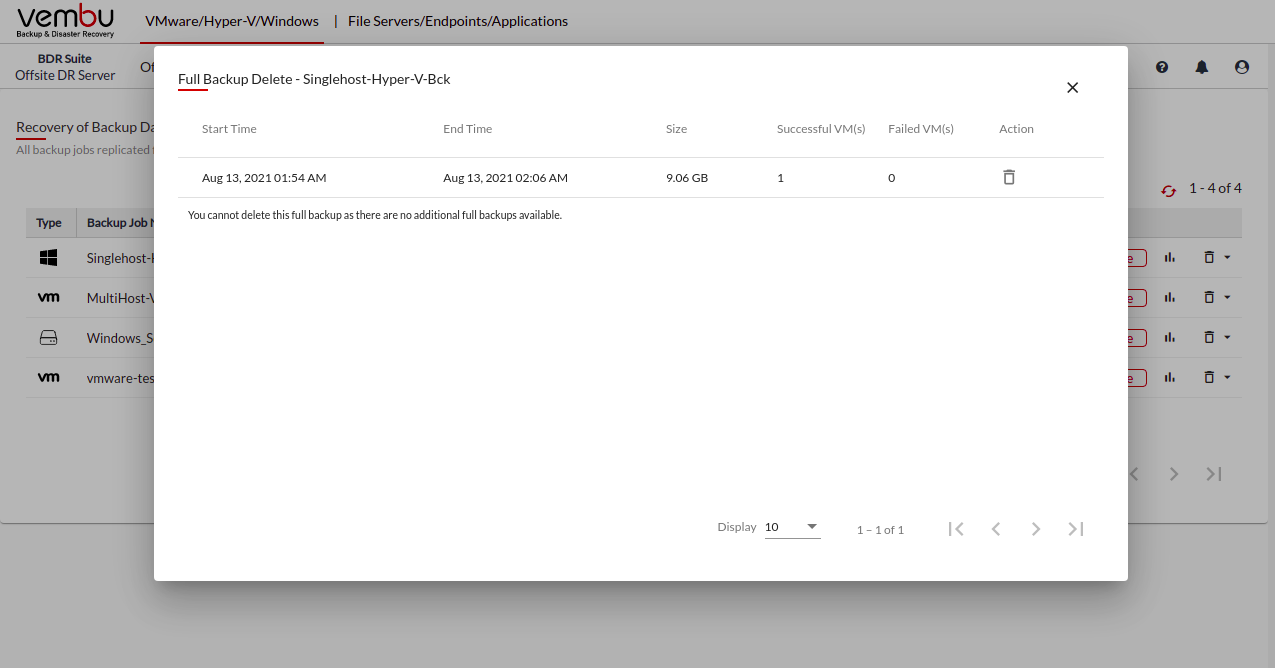

  • To delete a replicated full backup job click on the Delete Full Backup Data option in the drop-down list alongside the respective job.

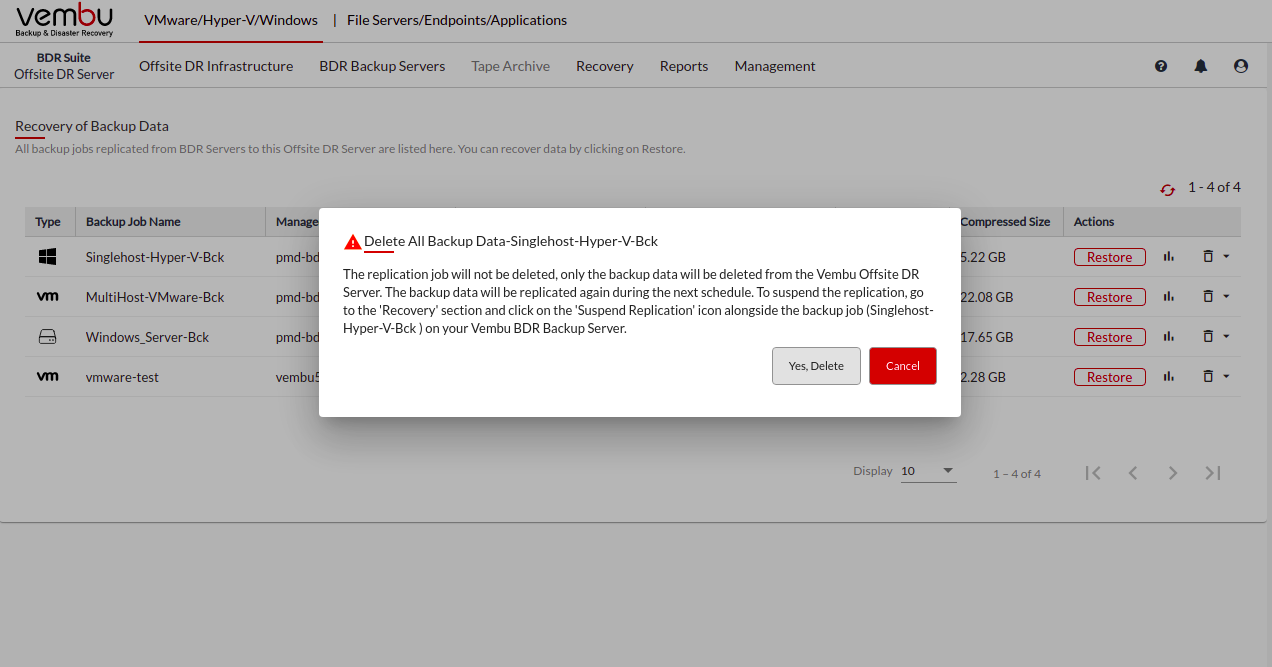

  • To delete a replicated backup job click on the Delete All Backup Data option in the drop-down list alongside the respective job which you wish to delete, once done a pop-up window is displayed as shown below.
