BDRSuite for Applications

BDRSuite for Applications

The BDRSuite for Applications requires installation of two components; 1. The BDRSuite Backup Server and 2. BDRSuite Client for Files & Applications.

BDRSuite Backup Server

Download

Click here to Download the BDRSuite Backup Server. You can check the supported OS for BDRSuite Backup Server installation here.

Install

Guide to perform installation - Click here

Login

Once the installation is complete you can log in to the BDRSuite Backup Server's Web-GUI via the following options:

  • Entering the URL: https://localhost:6061 (or)
  • HTTP://<IP_Address_of_Machine>:6060.
  • View the Supported Browsers here.

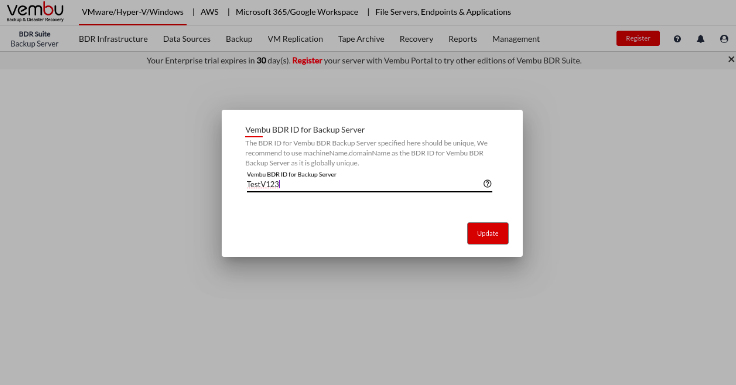

Unique BDRSuite ID Setup

 Enter a unique BDRSuite ID. The ID should be globally unique, as it is with this ID that each installation of the BDRSuite Backup Server will be identified.

To configure back up for your Applications,  you need to install 2nd component the BDRSuite Client for Files & Applications.

BDRSuite Client for Files & Applications

Download

The BDRSuite Client for Files & Application can be downloaded by navigating the BDRSuite Backup Server as follows;

Under the main tab Applications & DBs navigate to Data Sources -> Manage BDRSuite Clients -> Download BDRSuite Client

Install

Guide to perform installation - Click here

Login

Once the installation is complete you can log in to the BDRSuite Client for Files & Applications Web-GUI via the following options:

  • Entering the URL: https://localhost:4041 (or)
  • HTTP://<IP_Address_of_Machine>:4040.
  • View the Supported Browsers here

Registering the BDRSuite Client for Files & Application to the BDRSuite Backup Server

 Enter the IP address of the machine where you have installed the BDRSuite Backup Server and click on Add. The BDRSuite Client for Files & Application will be registered to the BDRSuite Backup Server.

Once after setting up, you can start the Backup Configuration by navigating the BDRSuite Client for Files & Application as follows;

Backup -> Configure Backup -> and choose the application you would like to backup.
