Advanced Settings

Advanced Settings

This section contains setting up the VMware CBT Reset.

Advanced Backup Settings

VMware CBT Reset

When a VMware VM is backed up for the very first time using the BDRSuite Backup Server, by default the  CBT (Changed Block Tracking) is reset.  The BDRSuite resets the CBT only for a full backup schedule.

Option to either keep the VMware CBT enabled or disable

The VMware CBT Reset can be disabled in a scenario where another third party application also uses the CBT.  If the CBT is not used by any other application, then the setting can be left enabled.

In simpler words, if VMware CBT Reset is enabled, then the CBT will be reset when a VM is backed up or replicated for the first time using the BDRSuite Backup Server. If the VMware CBT Reset is disabled then the CBT will not be reset when a VM is backed up or replicated for the first time using BDRSuite Backup Server.

Information Note: The VMware CBT Reset is applicable only for ESXi v4.0 & newer and the VM's Virtual Hardware v7.0 & newer.

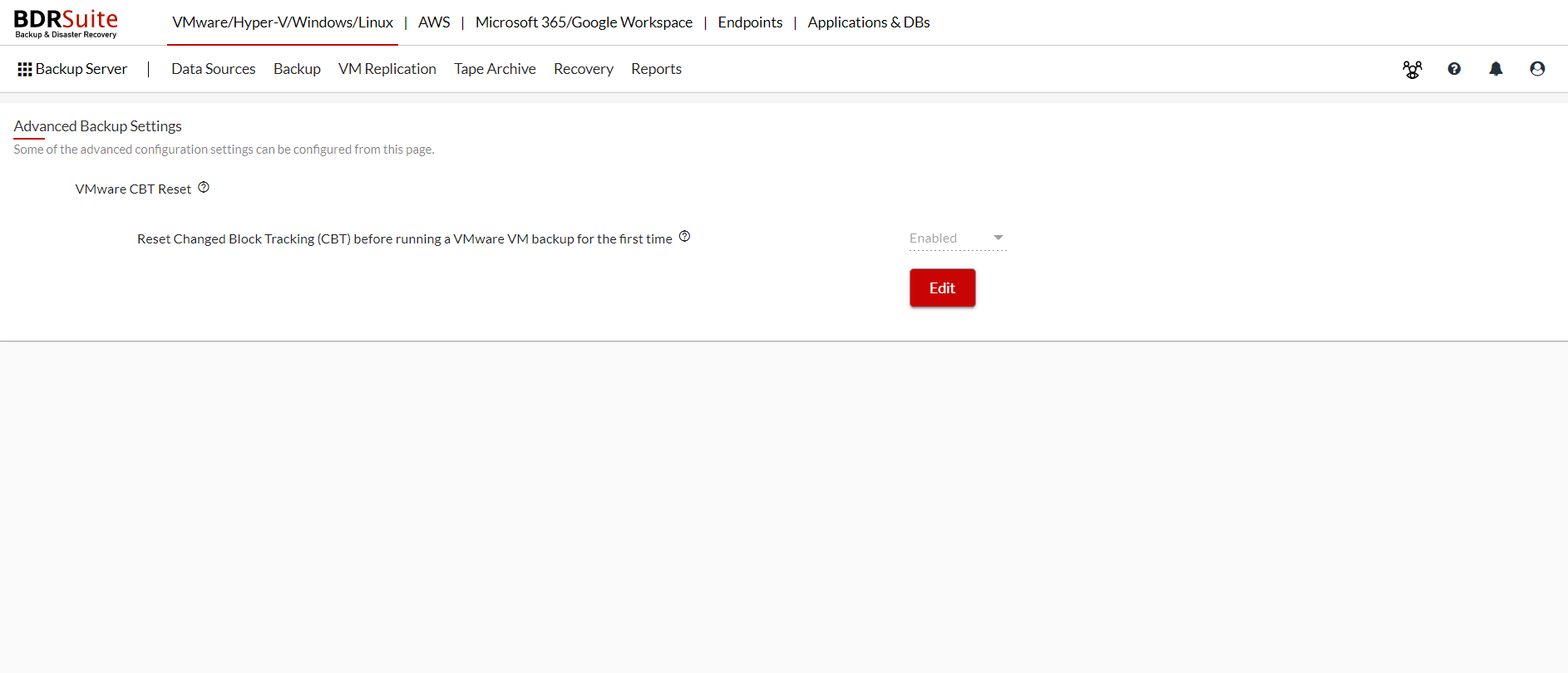

Navigate to the Backup -> Configure Backup Settings -> Advanced Settings in the BDRSuite Backup Server to set up the VMware CBT Reset.

Click on the Edit button, choose the required settings and update. On the pop-up box, confirm by giving Yes, Proceed to make the chosen option effective.
