Add Mac (File & Folder Backup)

• Prerequisites to Add Mac (File & Folder Backup)

When a Mac machine is added to the BDRSuite Backup server, a BDRSuite Backup Agent (BBA) is automatically or manually  installed in the target machine. In order for the agent to be installed, certain prerequisites are to be met by the Mac target machine. Check for the Prerequisite (Link given above), if already done then you can follow the below steps to add the Mac Machines.

Procedure to add Mac Machine

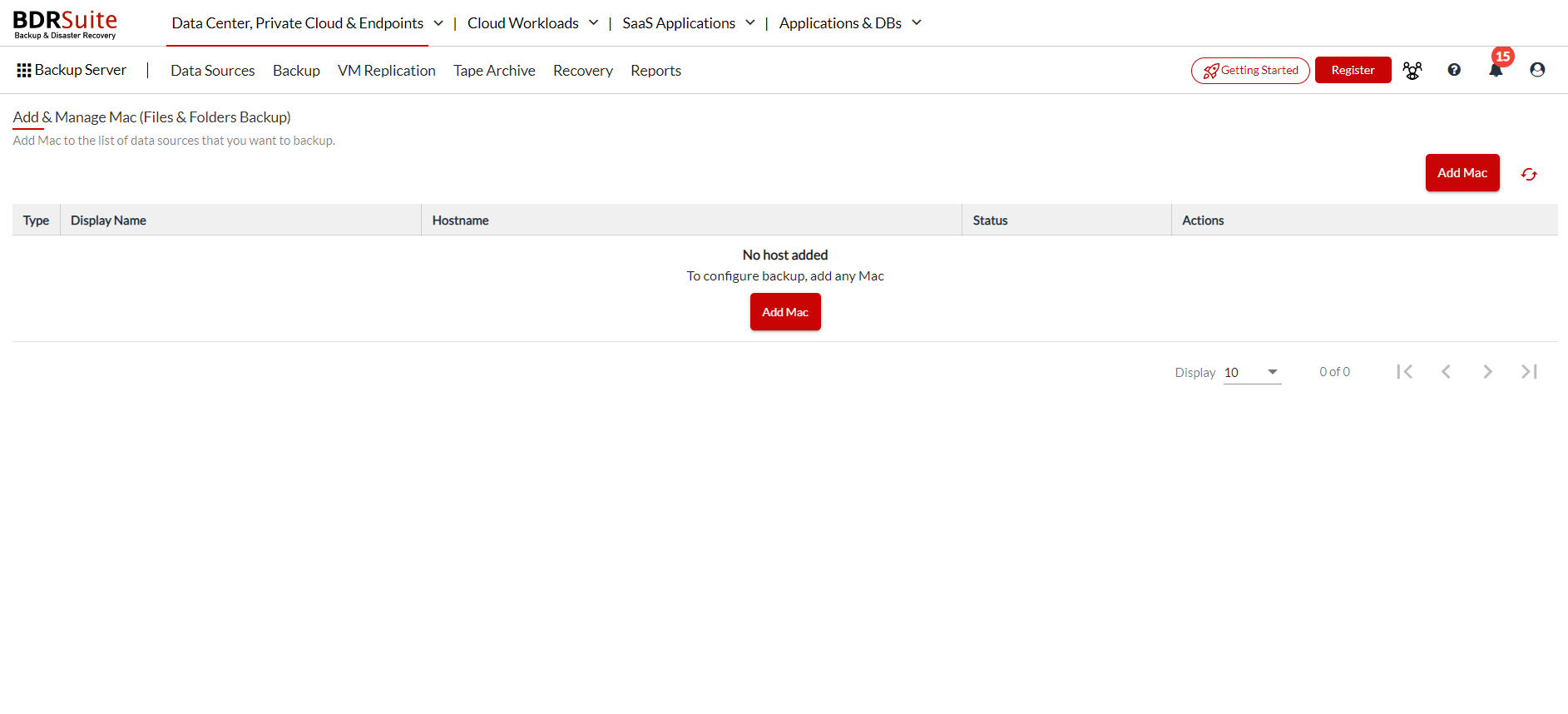

Mac machine has to be added before you begin configuring the backup schedule. In the Data Sources tab choose 'Add Mac (File & Folder Backup)'. You will be taken to a page where you will see a message stating 'No host added' if you adding host for the first time.

Click on 'Add Mac Machine' and there are three distinct methods provided on the opening page for adding  which are as follows;

• Add Host and Install Agent Manually
• Add Host and Install Agent Automatically
• Import Hosts from CSV  file (Bulk Installation)
• Import Hosts from AD/LDAP Server (Bulk Installation)

1. Add Host and Install Agent Manually

• Enter the target Linux Host details and save to the BDRSuite Backup Server/Client.

• Download and install BDRSuite Backup Agent (BBA) on the target host, which runs as a Service with the name BDRSuite Delegation Service.
• Click the 'Register BBA' button alongside the added host under the 'Data Sources' menu. This will establish connection between the target host and the BDRSuite Backup Server/Client.
• You can configure backups for Linux Hosts that have successfully connected and registered with the BDRSuite Backup Server/Client.

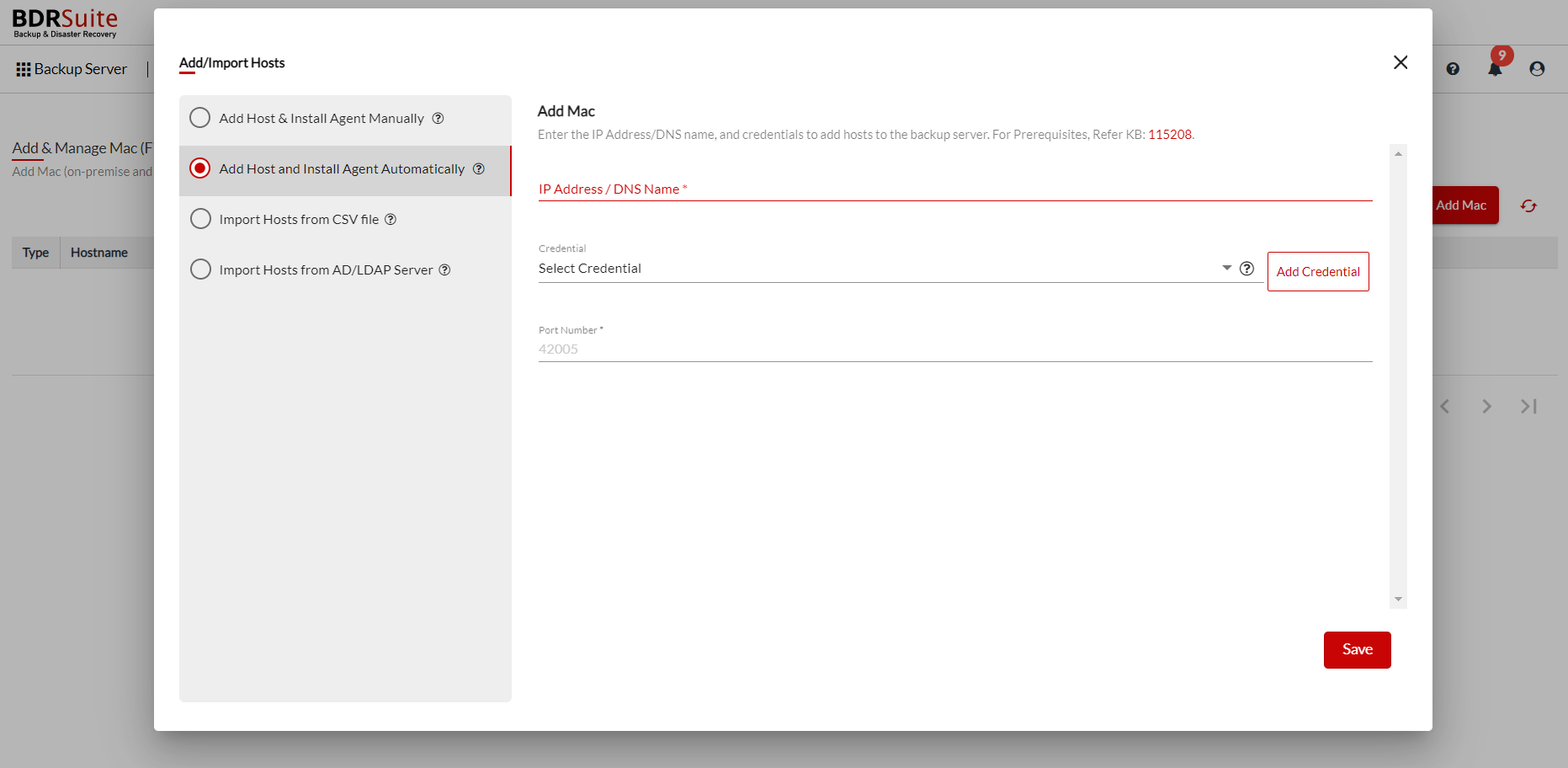

This option allows you to add each host by entering their IP address and credentials.  This will automatically install BBA on the target host

Add Mac machine by providing ‘Hostname/IP Address and its login credentials.

IP Address/DNS Name

Enter the hostname or IP address of the hostname for which you have to proceed with the backup

The Hostname can be added using FQDN(Fully qualified domain name) ie., machine_name.domain_name. You can connect your host with BDRSuite Backup Server through the following combinations in the Hostname/IP Address section:

• Hostname - Enter the Hostname alone
• Hostname@Domain name - Enter the hostname followed by @ and domain name
• Domain name/Hostname - Enter the domain name followed backslash (/) and the hostname
• 192.xxx.xxx.xxx - Enter the IP address

Credentials

• You can add new credentials or select existing credentials.

• User Name: Enter the username of the specific host
• Password: The password of the host or IP Address

Port Number

• 42005: Port used for communication between BDRSuite Integration Service and BDRSuite Backup Server

• BDRSuite Backup Server communicates with the Linux machines using the port that is set to 42005 as default. You can modify this port number as per your port number availability.

Save the added mac after entering all the details.

The Mac machine will be added to the BDRSuite Backup Server if you had chosen automatic installation of BBA.

Edit

You can select a different credential or add a new credential.

Delete

If you want to remove a particular Mac machine, click the Delete option. A pop-up window with the message "Are you sure, you want to delete the selected server or host?" will appear. Click Yes, Delete.

Rescan/Register BBA

The Rescan option installs the BDRSuite Integration Service agent automatically in the Mac machine, which is mandatory to proceed with the backup. In the status column, you can view the current progress while you rescan. If you had chosen the manual BBA installation option then the Register button will be given in the place of rescan.

Report

The Agent information report gives you the stage-wise report of the agent installation, click the Reports icon to view the Machine Name, Version, Installed Time, Status, Remarks. Further, expand it to view the installation start and end time.

BDRSuite Backup Server pushes VIS - BDRSuite Integration Service onto the added target machine. BDRSuite Integration Services: VIS acts as an agent in the target machine in which the data present in the machine has to be backed up. BDRSuite Integration Service reads the data from the added machine and lists the files & folders in the BDRSuite Backup Server for backup.

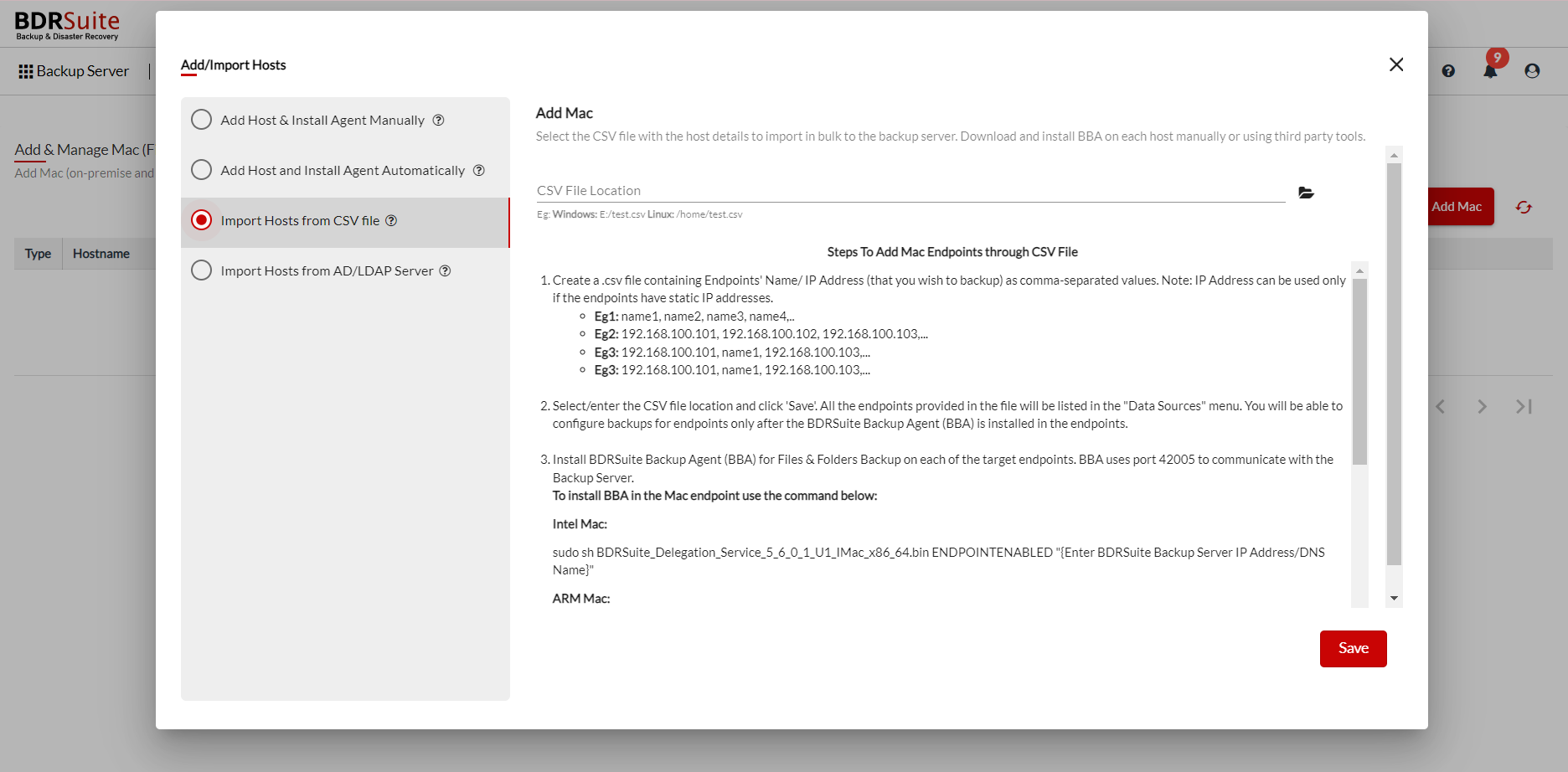

3.  Import Hosts from CSV  file

You can also refer to the KB .

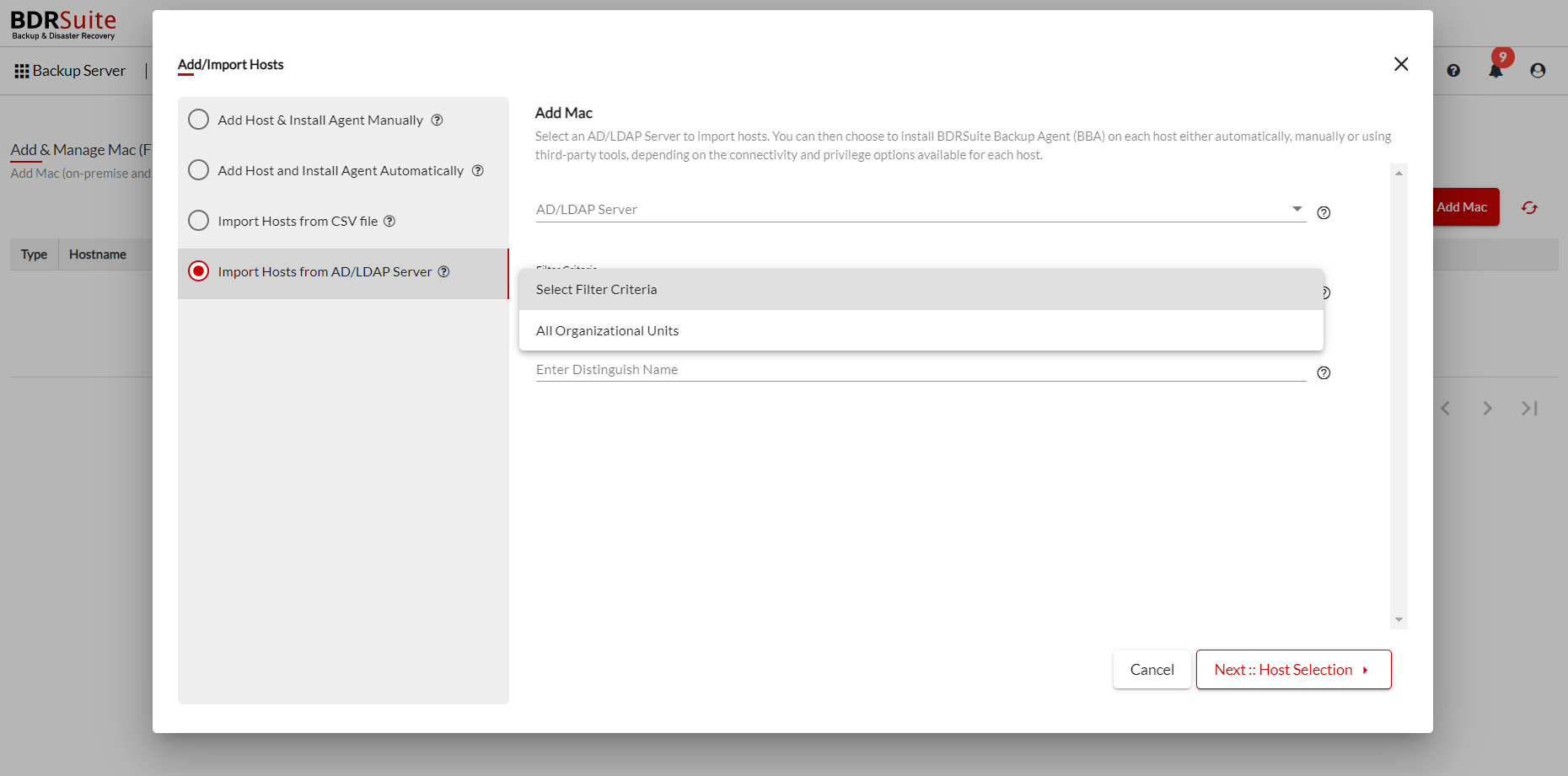

4. Import Hosts from AD/LDAP Server

To import AD/LDAP Server you need to first add the AD/LDAP Server. Click here to learn more about the process.

a. AD/LDAP Server selection

• AD/LDAP Server

If the AD/LDAP Server is already added then choose it from the drop down menu .

• Filter Criteria

You can use the filter option to display only the hosts based on filter criteria such as All Organizational units or Domain Controllers (Criteria). The hosts can be filtered by the following options;

1. Selecting a criteria.

2. Selecting a criteria and entering a distinguished name.

3. Entering a distinguished name without selecting a criteria.

• Enter the distinguish Name

Enter the distinguished name of the host to be added as a data source. (Optional - As per requirement)

Once after entering all the details click on Next: Host Selection.

b. Host Selection

Select the entire host or just the machines that are listed based on the applied filter and click on Add.

This will take you to the page where you need to add/select the credentials and also choose how you want to install the BBA.

After selecting the hosts, they will appear on the page along with the option to search for hosts by name. Information such as the credential name, BBA installation type, and the option to edit credentials or installation types as needed are also available.

In case you want to remove the added hosts you can do the same by selecting the respective host's checkbox and click on the remove button.

Now, you can click on Save and Ok, Proceed.

The Mac machine will be added to the BDRSuite Backup Server if you had chosen automatic installation of BBA. If you choose to manually download and install the BBA then you need to click on the Register BBA button to establish a connection between the added host and the BDRSuite Backup Server. The following options will be available after adding the Linux machine;
