Creating a New Object Storage Repository

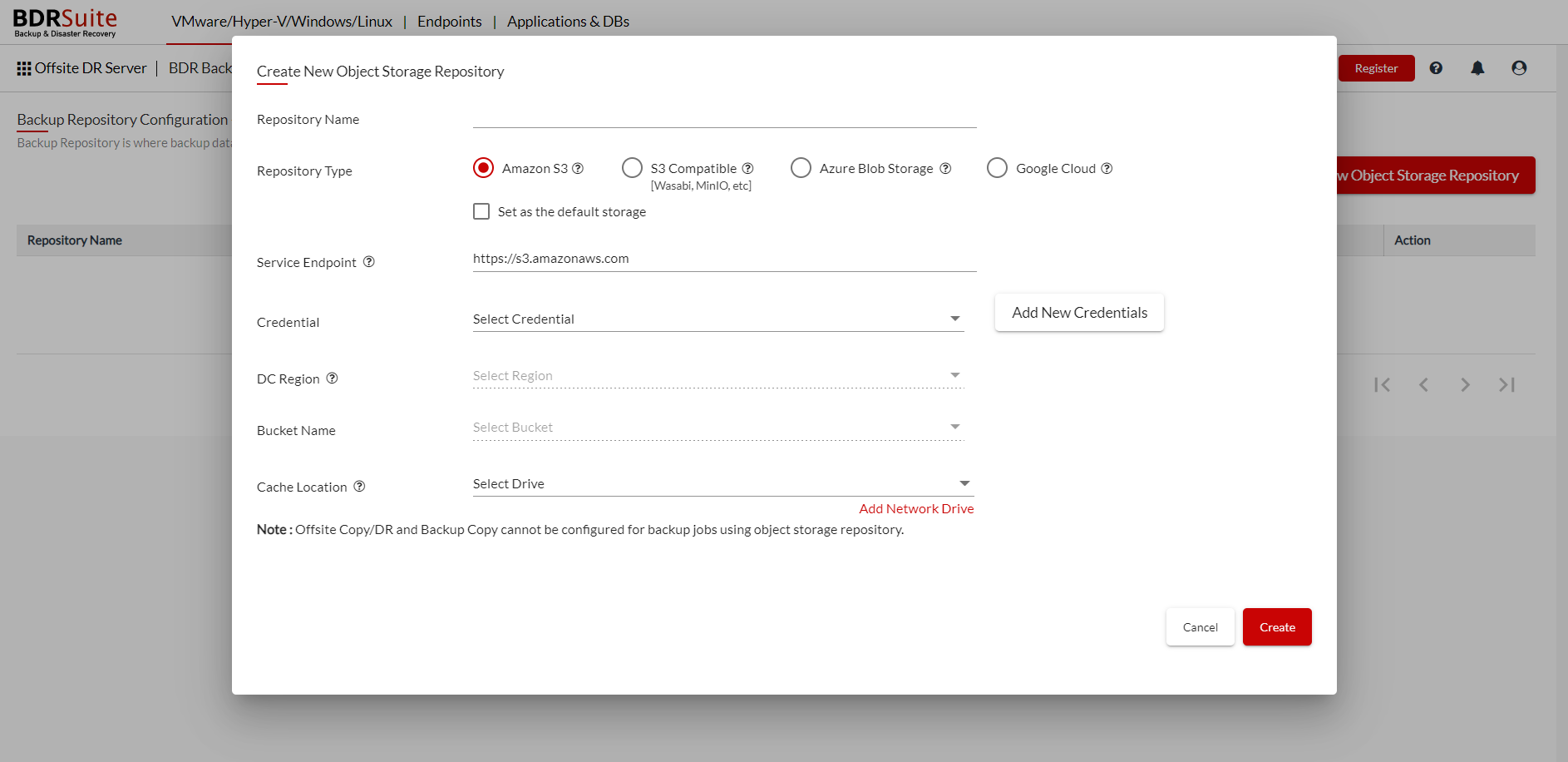

In the BDRSuite Offsite DR Server, navigate to Offsite DR Server tab ->Object Storage > Create New Object Storage Repository. You will be taken to the following page where the repository details have to be entered.

Repository Name: Give a Name to the repository you are creating

Repository Type: The repository you are creating can be Amazon S3 or S3 Compatible storage.

  • Amazon S3: Choose this repository type if you want to use your Amazon Web Services (AWS) S3 storage to store the backup data. You have to provide your AWS account credentials for the BDRSuite Offsite DR Server to access the AWS S3 storage.
  • S3 Compatible: Choose this repository type if you want to use S3 compatible object storage to store the backup data. You have to provide the necessary account credentials for the BDRSuite Offsite DR Server to access the s3 compatible storages.
  • Azure Blob Storage: Choose this repository type if you want to use Azure Blob Storage to store the backup data. You have to provide the necessary account credentials for the BDRSuite Offsite DR Server to access the Azure Blob storage.
  • Google Cloud: Choose this repository type if you want to use Google Cloud Storage to store the backup data. You have to provide the necessary account credentials for the BDRSuite Offsite DR Server to access the Google Cloud storage.

Service Endpoint: By default, HTTPS is used for Service Endpoint connection.

Information

Note: If you want to use HTTP instead of HTTPS then make sure that the firewall settings do not interrupt the data transfer during the backup or recovery.

Information

Note: While using the HTTP, enter the URL in the following format- http://SERVICE_ENDPOINT_URL.

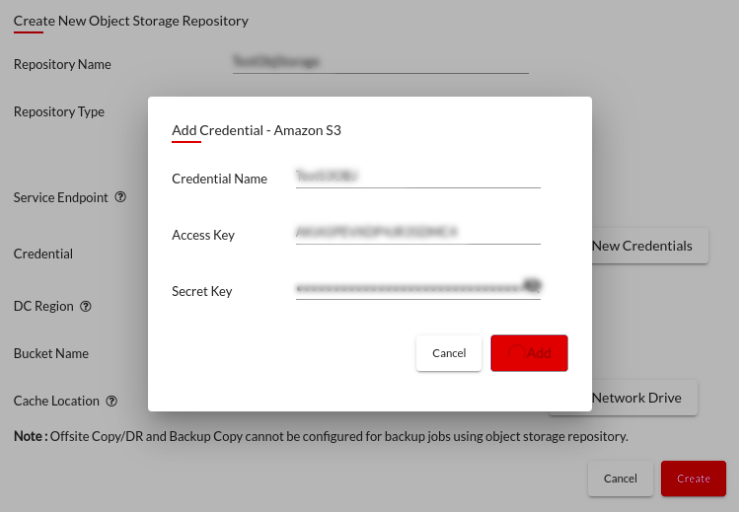

Credentials: You can use the already added credentials or add a new one and use it.

DC Region:  Select the Region

Bucket Name: Select the Bucket

Cache Location: Select the drive where you want to store the cache location. You can choose a local drive or a network drive.

Information

Note:

  • If you are using a backup server cluster, all the nodes will use the location selected here temporarily for storing the backup data before uploading it to S3.
  • If you want all the nodes to use a common location then make sure that the shared drive is mounted in all the nodes with the same drive letter used here.

After entering the above details click on create and you will see the object storage repository created and listed as follows.

The added object storage repository can be used as the backup data storage destination by choosing the same during backup job configuration.
