Log in to BDRSuite Offsite DR Web GUI

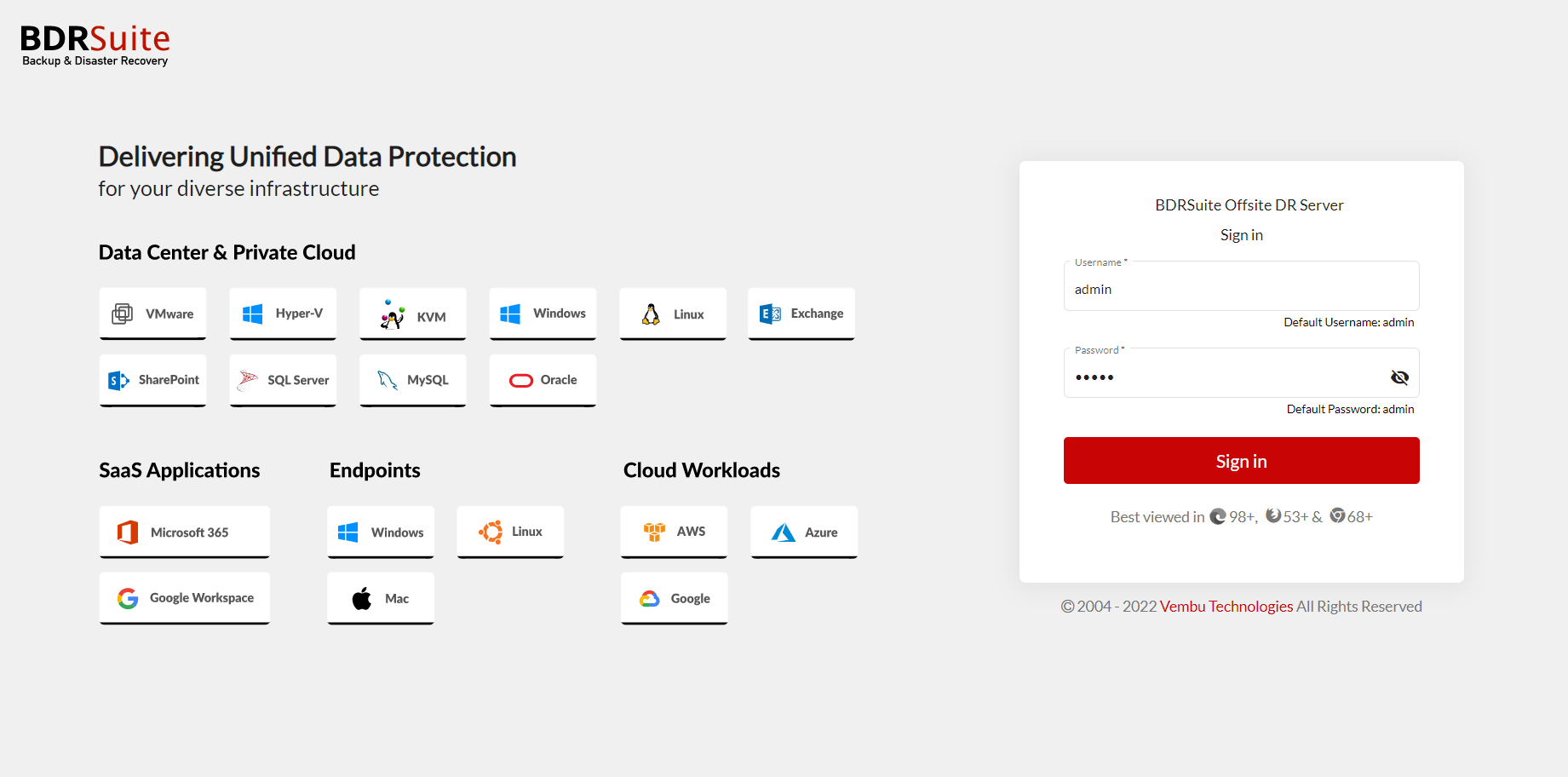

You can log in to Offsite DR Server web UI via the following options:

  • Entering the URL:  https://localhost:6061 (or)
  • https://<IP_Address_of_Machine>:6060 (or)
  • https://<IP_Address_of_Machine>:6061 (secured port) in browser. View the supported browsers - Offsite DR Server
  • Via shortcut icon created in the desktop
  • Via the Web-Console option the tray icon

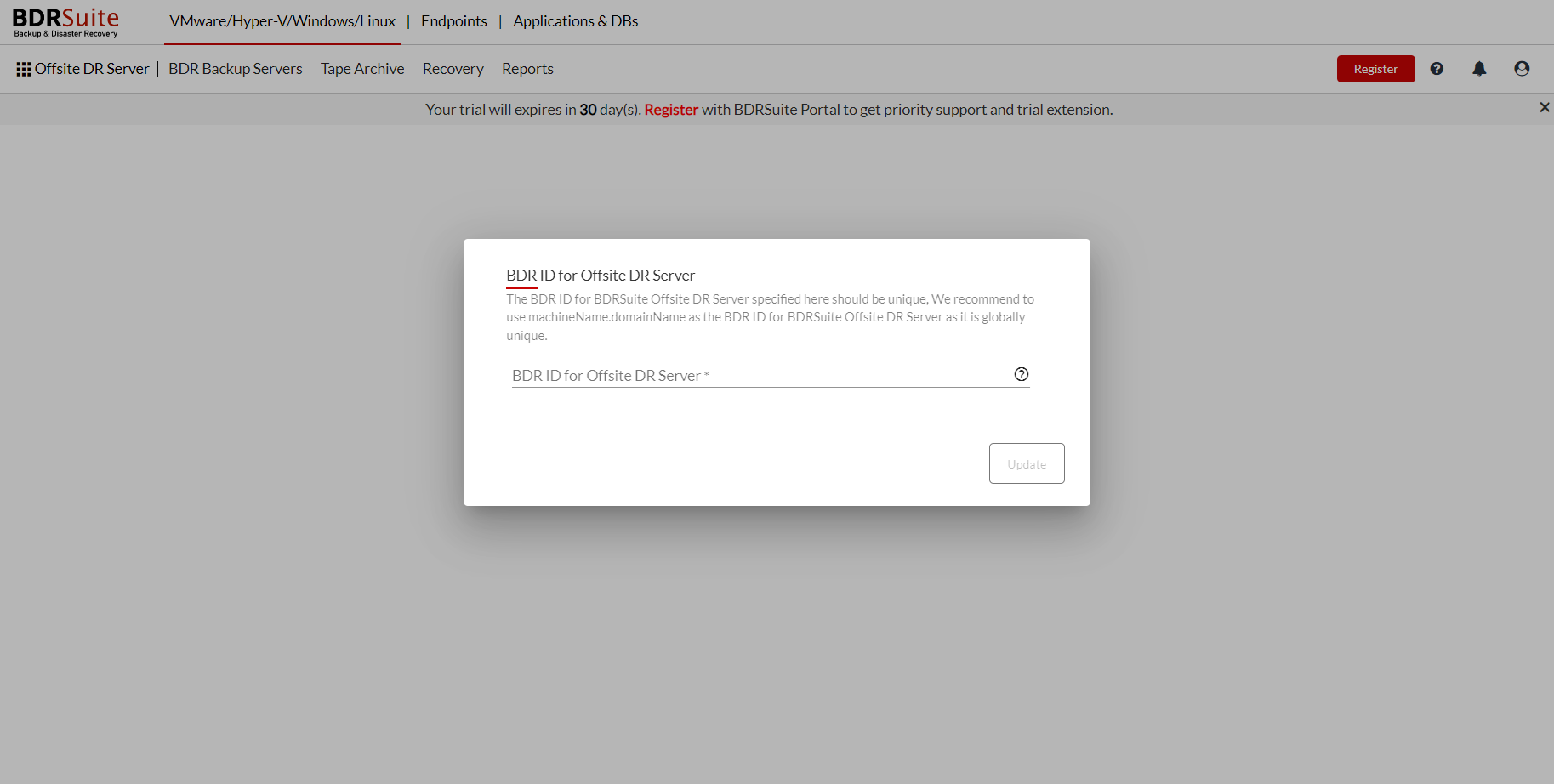

  • The next step is to enter a unique Offsite DR Server ID. The ID should be globally unique as it is with this ID that each installation of the Offsite DR Server is identified.

Information Note:

It is recommended to give the machine name. domain name as Offsite DR Server ID since it should be globally unique.

Information Note:

The following characters are permitted as part of the  ID:

[ A-Z][a-z][0-9][ - _ .] Your ID must not start or end with special characters and it must be between 1-50 characters in length.

Troubleshooting

  • If there seems to be an issue existing in accessing web GUI, check whether the Offsite DR Server service is running in Services.
  • Check if the Offsite DR Server WebServer service is running.

To check the version of the BDRSuite Offsite DR server

  • Open the web browser and type the following URL:
    • localhost:6060/readme.html (or) IP Address:6060/readme.html

Once after login, you can see the two types of BDRSuite Clients tab which can be chosen according to the requirement and proceed with the process.
