Manage Network Drives

Manage Network Drives

  • Through the Manage Network Drives option, you can add and delete Network Drives which will then be listed along with files/folders for backup with a separate drive letter and can be configured for backup jobs.

Information Note:

Mapped Network Drives are not supported when NetworkBackup Client runs in a local logon account. Change logon user with administrator privileged user in the service management console and then proceed to configure Network Drive

  • Go to the Settings tab and select Manage Network Drives option.

Add & Manage Network Drives

To add a Network Drive, one must provide the following attribute details:

  • Drive Name- Provide a drive letter/name for Network Drive to be added
  • Drive Path- Network path of the drive to be added

Ex: \\<MACHINE_NAME OR IP_ADDRESS>\<SHARE_NAME>

  • Username & Password- If Network Drive requires login authentication provide the username and password to authenticate drive addition.
  • You can add ‘n’ number of Network Drives and can manage it via the Manage Network Drives page.

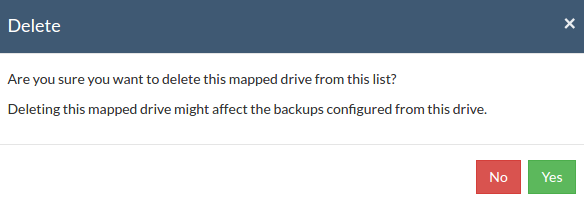

  • A Network Drive added can also be deleted if not required, with delete option alongside drives added.
