  • Select the Show Accounts Tree option to view more details on that particular account. If it is a distributor account, the tree hierarchy will be as follows: Distributor -> Reseller -> Service Provider -> Customer of that SP -> Server of that customer
  • It will list all the servers that are connected to this account. Select any specific server from the list, the details for the specific server selected can be viewed.
  • From the Accounts Tree section, you can view the Backups Jobs Overview as well as the Virtual Machine Overview.

  • Select the Show Detailed View option. This will display the following:
    • Backup Name
    • Plugin Type
    • License Status
    • Recent Schedule Details (Start Time, End Time, Status)
    • Overall Schedules count

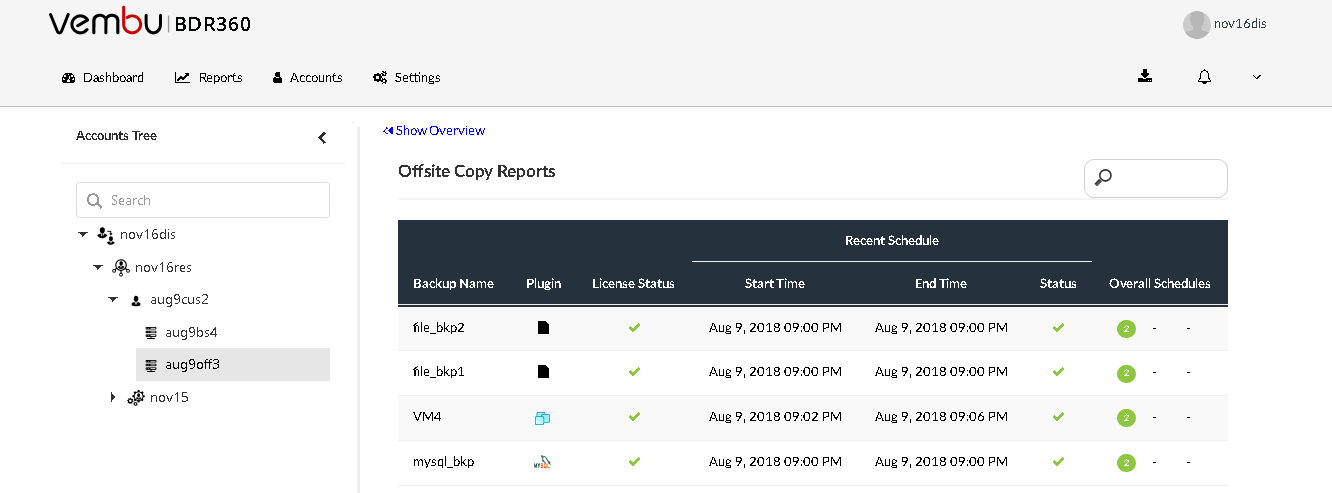

  • Similarly, reports for Offsite Copy can be viewed. Select the account from the Accounts Tree section. The overview page will be displayed, click the Show Detailed View option. The following details will be available:
    • Backup Name
    • Plugin Type
    • License Status
    • Recent Schedule Details (Start Time, End Time, Status)
    • Overall Schedules count

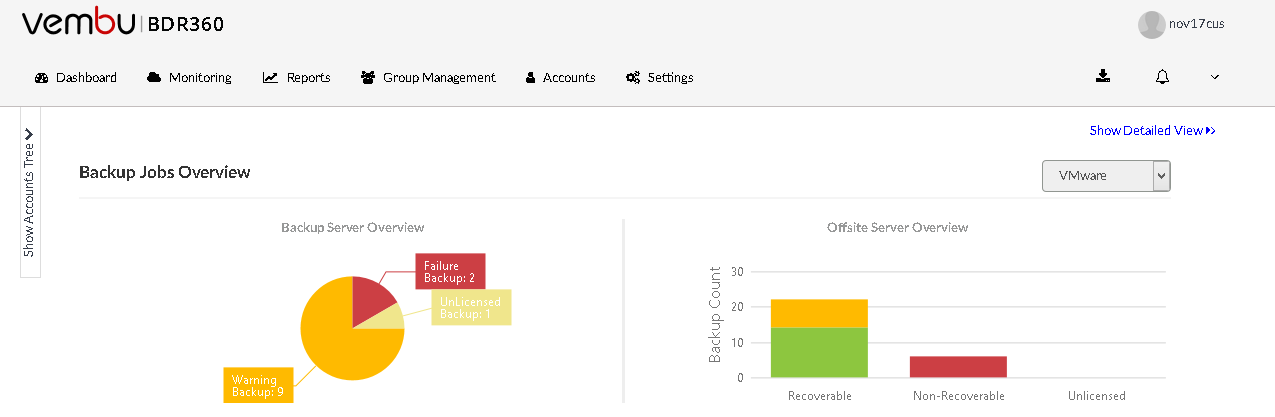

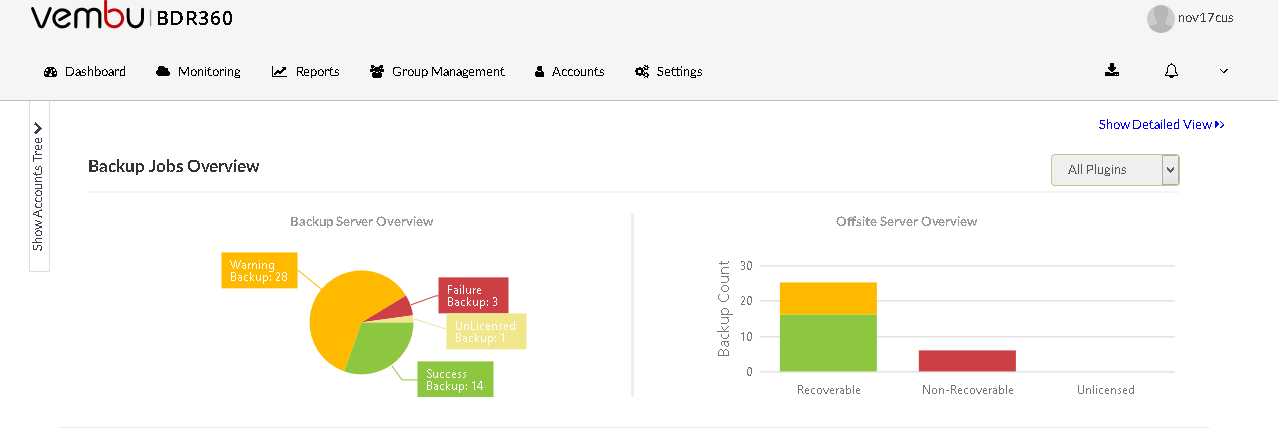

  • The same report can be viewed from the dashboard. Select the Dashboard tab. The dashboard displays the backup jobs overview on a single screen along with the status of the backup. It is split into two portions:
    • Backup Jobs Overview
    • Virtual Machine Overview
  • The Backup Jobs Overview is split into to the following:
    • Backup Server Overview - this displays all the backups that are configured from the BDR Backup Server. The count for the backups that are successful, Unlicensed, Failed, and with warnings can be viewed.
    • Offsite Server Overview - this displays all the backups that are configured to the Offsite Server. The count for the backups that can be recoverable, non-recoverable, and unlicensed is displayed along with the backup count.

  • Select the required plugin type from the All Plugins drop-down list. Select a particular plugin type, for example, select VMware, this will list the backup count along with the success, failure, unlicensed, and warning count for all the VMware backups alone that are configured from that backup server. In the Offsite Server Overview, the number of VMware backups that can be recovered, that cannot be recovered, and the unlicensed backups count can be seen.
  • Four plugin types are available:
    • VMware
    • Hyper-V
    • Disk Image
    • Other Plugins

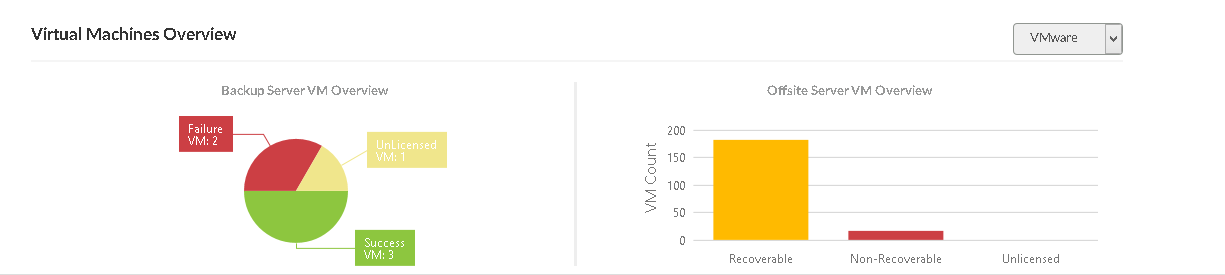

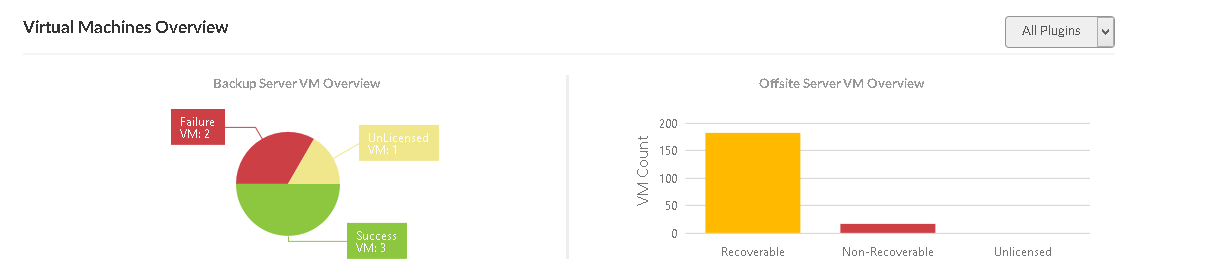

  • The Virtual Machine Overview is split into the following:
    • Backup Server VM Overview - this overview is specific for virtual machine backup alone. The count for successful backups, failed, and unlicensed for the VMware and Hyper-V plugin can be viewed.
    • Offsite Server VM Overview - this tab displays the count of the VMware and Hyper-V plugins that can be restored, non-recoverable, and unlicensed.

  • From the All Plugins tab select any one:
    • VMware
    • Hyper-V

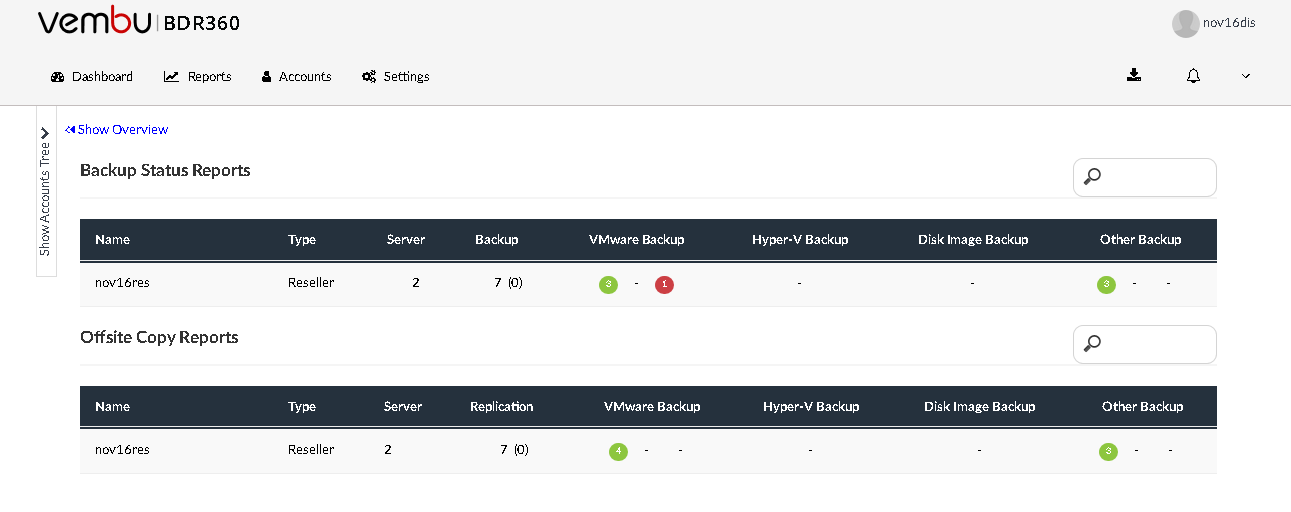

  • If you need a more detailed view, select the Show Detailed View option. This will list the Backup Status Report and the Offsite Copy Reports.

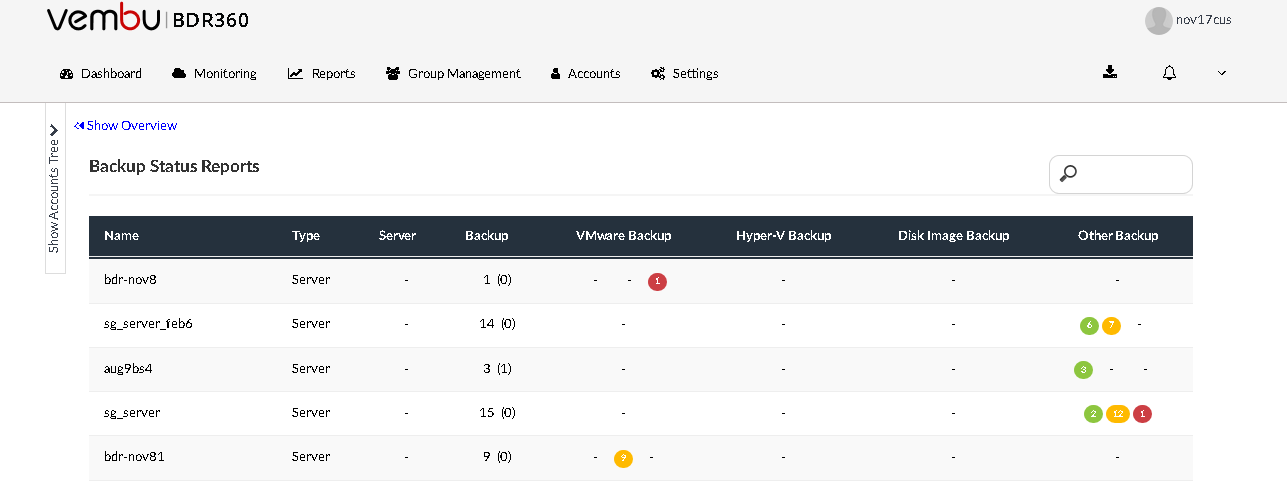

  • Backup Status Reports displays the status of all the backups that are configured from various backup servers along with the following details:
    • Name of the backup server
    • Type - reseller, service provider, customer
    • Server
    • Backup Count
    • VMware Backup count
    • Hyper-V Backup count
    • Windows Image Backup count
    • Other Backup count

  • For example from the VMware Backup list select the count. This will further expand and display further details on all the VMware backups configured from that particular server. This is similar for all other plugin types.

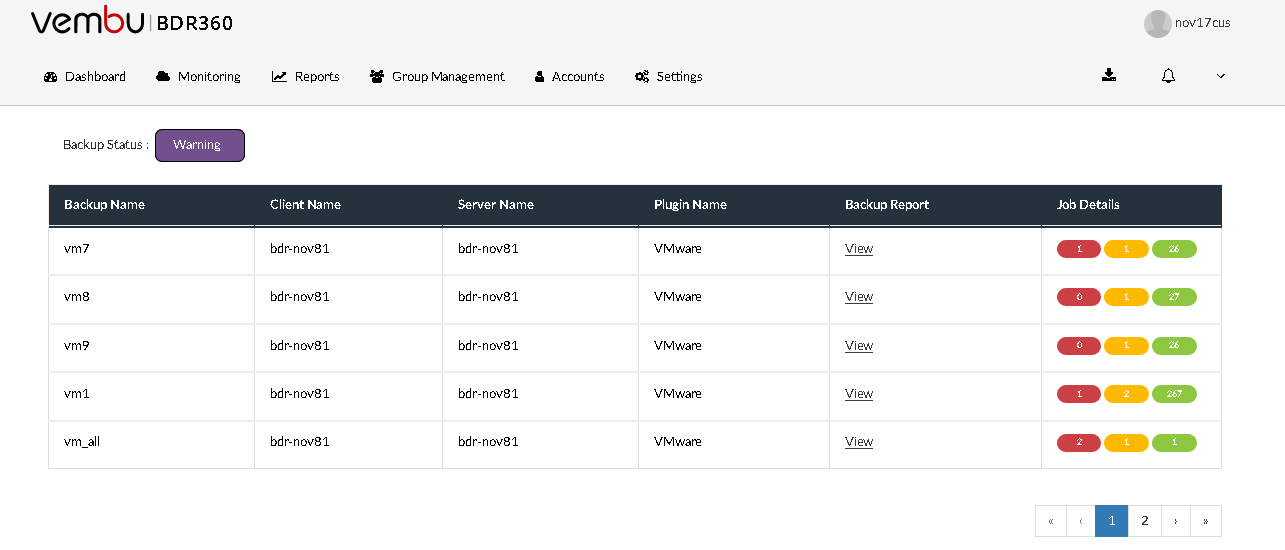

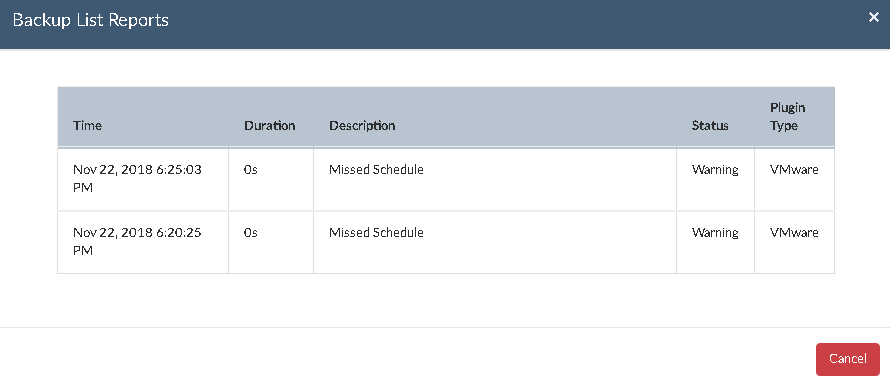

  • The details such as Backup Name, Client Name, Server Name, Plugin Type, Backup Report, and Job Details count can be seen. Click the View option in the Backup Report tab to view the Backup List Reports. The backup status can be viewed based on whether the backups have completed successfully, with warning, or failed. From the Backup Status tab, select the required option.

  • In the Offsite Copy Reports section, the offsite copy status along with the following details can be viewed:
    • Name of the account
    • Type - reseller, service provider, customer
    • Server
    • Backup Count
    • Replication
    • VMware Backup count
    • Hyper-V Backup count
    • Windows Image Backup count
    • Other Backup count

  • For example from the VMware Backup list select the count. This will further expand and display further details on all the VMware backups configured from that particular server. This is similar for all other plugin types.

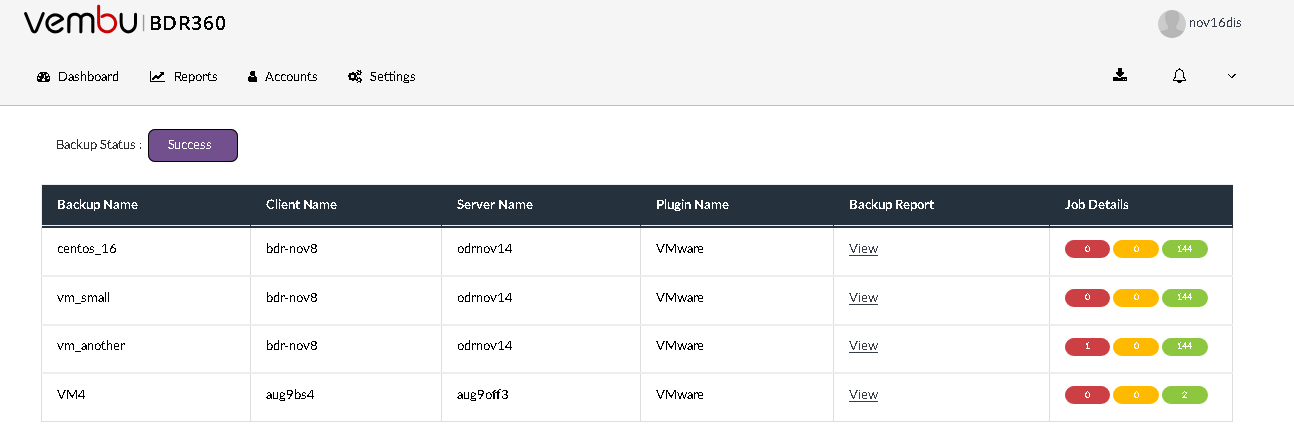

  • The details such as Backup Name, Client Name, Server Name, Plugin Type, Backup Report, and Job Details count can be seen. Click the View option in the Backup Report tab to view the Backup List Reports. The time scheduled, duration, description of the replication, status, and plugin type will be displayed. The backup status can be viewed based on whether the replication has completed successfully, with warning, or failed. From the Backup Status tab, select the required option.
