MS SharePoint Restore

Vembu NetworkBackup restores the SharePoint sites that are backed up from the SharePoint Server. The SharePoint Site Collections are restored to a local location and the dump process is performed by SharePoint’s internal Native Dump Utility - STSADM.EXE

Need for SharePoint backup and restore:

• When a site collection is deleted in a SharePoint environment (intentionally/accidentally) and if needed for later use.
• When a site-collection is modified and its original/previous state is needed.
• When a redundant copy of business-critical site-collection is required.
• When losing a portal site and in need of re-creating a new one with original site-collections.

Restoring SharePoint site collections in Windows involves two major steps:

• Restoring SharePoint data from backup server to a local drive.
• Restoring *.dat file to the actual site-collection in a production environment.

How it works?

Vembu NetworkBackup recovers the backed up data from the backup server to a local drive. By using a few commands in the command prompt, the files can be restored to the same site collection which may be active or deleted. The files can also be restored to a new site collection or to a site collection which is non existent using STSADM.EXE tool.

Beginning the Restore:

• To begin the restore process, click the Restore tab. From the list of displayed backup(s) select the MS SharePoint backup that is to be restored.

Restoring SharePoint data from backup server to a local drive

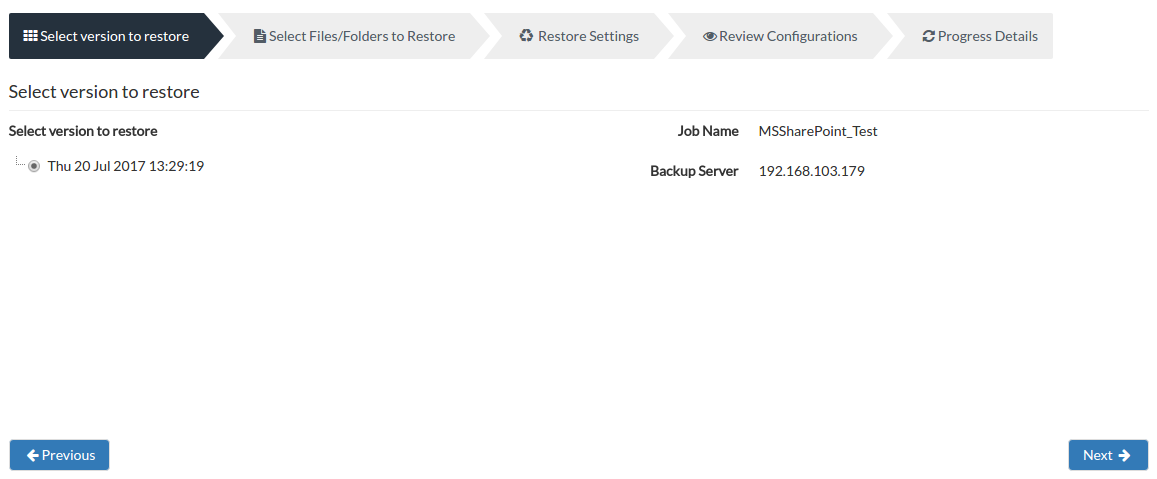

Step 1- Select version to restore:

• A tree listing various backup timestamps with the full backup as its parent node will be displayed. This list generated is based on incremental and retention configured. If additional full backup is configured, then there will be more than one parent node listed based on the configuration.
• The Job name and Backup Server IP address will be displayed. Verify them before proceeding with your restore. Select the time-stamp from which you want to restore data and proceed to select SharePoint sites. Click Next to proceed to configure the Files/Folders for the restore process.

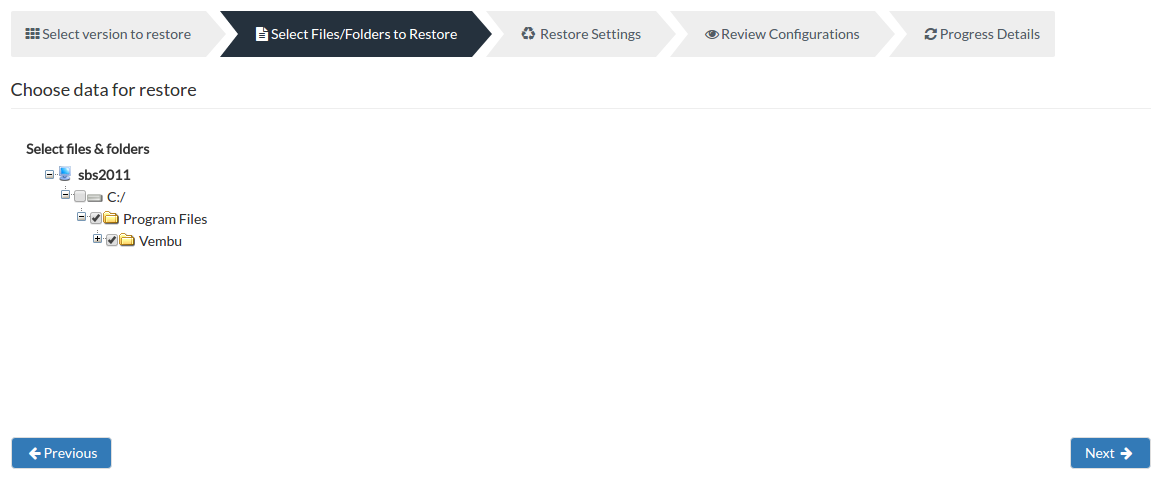

Step 2- Select Files/Folders to Restore:

• The next step in the restore process will be to configure the SharePoint files/folders that needs to be restored from the displayed tree.
• To configure individual files for restore, select the (+) to expand the folders further and choose the required SharePoint file or SharePoint folder for restore.  You can either select entire backup or select specific SharePoint Sites for restore and proceed by clicking Next.

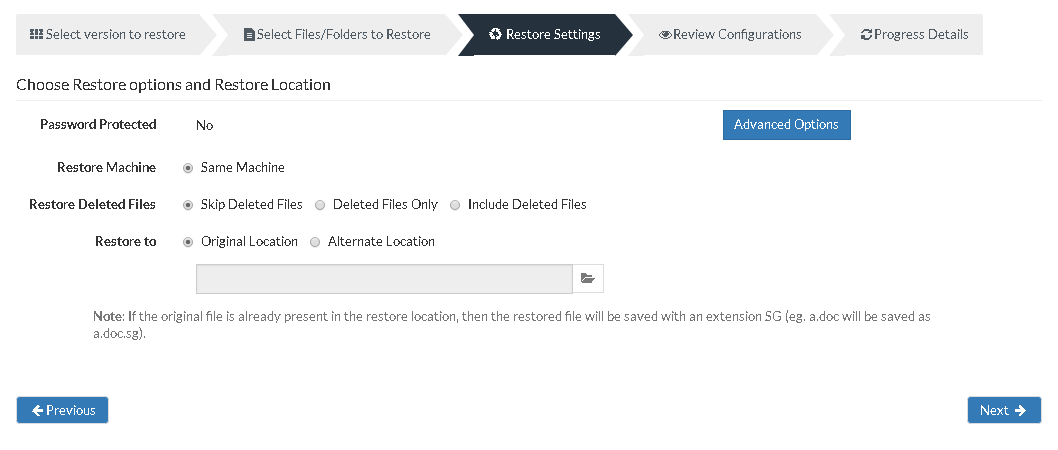

Step 3- Restore settings:

This step has following options:

Password Protected- This option reveals if the backup job that is being restored is encrypted or not. If yes, provide the correct password.

Restore machine- The machine to which the restore is going to happen. By default, this will be chosen as the same machine.

Restore Deleted files- Decide what must be done with the deleted files in a backup schedule:

• Skip deleted files (Restore backup data skipping deleted files) - Choosing this option will not restore the deleted files and skip them instead.
• Deleted files only (Restore deleted files alone) - This option will restore the files that are deleted alone and omit the other backed up data from the restore process.
• Include deleted files (Restore backup data along with deleted files) - This option will restore the backup data along with the deleted files.

Restore to- Configure the location of the restore: You have two choices to choose from:

• Original location- This will restore data to backup source location and if the source files(Original files) are present, the restored files will be saved with a *.SG extension.
• Alternate Restore location- This will allow the user to specify a alter location where backup data can be restored to.

Advanced Options:

When the backup data is restored, it is possible that source files are already present in restore location. In this case, Vembu NetworkBackup will retain source file by default and restore files by renaming with a *.SG extension.

Advanced Settings allow alternate options to change this, they are:

• Rename the restored file with *.SG extension and keep existing files (This is the default option selected).
• Rename the existing file with *.SG extension and restore backup file as it is.
• Overwrite the existing file with restored file (If the existing file is different from backed up file restored, the contents of source files will be lost. Choose this option, if you are sure that current file can be overwritten). Choosing this option will display the alert shown below.

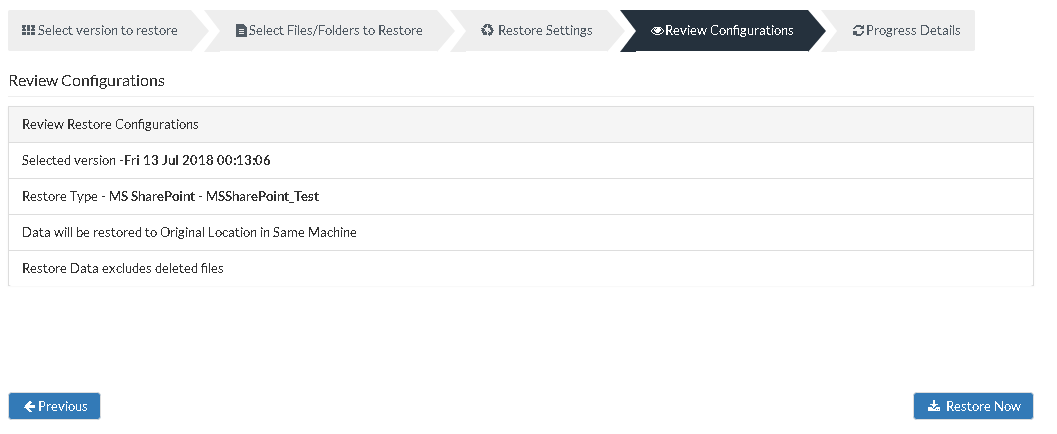

Step 4- Review Configurations:

• You have reached the final step of the restore process wherein you have to review the configuration you have provided and click Restore Now option. This will trigger the restore process. Review restore progress and make sure it gets completed successfully.
• You can view the status of your MS SharePoint restore from the 'Status' option. Once you click the inverted arrow mark, the page displayed below will be available.

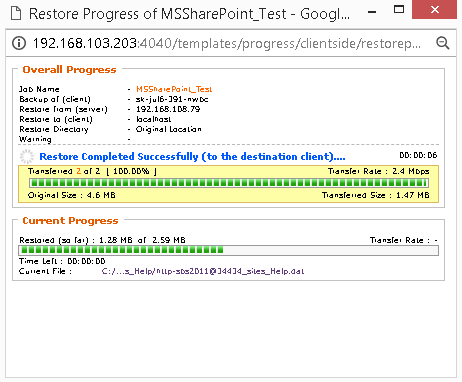

The following details will be available in the Restore Progress Page:

Job Name: Name of the backup job

Backup Of: Client Name

Restore from: From where the restore is happening, either from Client or Server

Restore to: To where the restore is happening.

Restore Directory: The location to where the restore is taking place.

Warnings (If any)

Transfer Rate: Speed at which the restore is occurring

Transferred Size: The amount of backup data that is transferred

Original Size: The actual size of the backup data

Time Left: Time remaining for the restore to complete.

Current Progress: The progress of the restore, it will depend on how much data is restored.

• You can abort your restore if not required from the Abort (-) option available in that window. You will get a pop up as shown below. Click OK to Abort your restore.

Note: To enhance your restore performance, close the progress window and open it only occasionally to check restore progress.

• You can suspend your restore if not required from the Suspend option available in that window. You will get a pop up as shown below. Click Ok to Suspend your restore.

Restored Files:

Once restore completes successfully, the restored files will be stored in following naming pattern:

<Restore_Path>\<Temporary_Dump_Location>\<Backup_Name>\<Portal_Site_Name>\<Site_Collection_Name>\<Site_Collection_Name>.dat

Note: Portal site name and Site collection name will be modified as per following rules and will be used as file/folder name.

• The character colon (:) in the portal site URL will be replaced with "@".
• The Characters \<>/*?"| and space characters in the portal site/site collection will be replaced with an underscore(_). Other characters will remain the same.
• "http://" or "https://" will be removed.

Example:

Take portal URL: "http://winserver3:9090"

One of the site collections under it: "http://winserver3:9090/sites/first-No.1site"

Restore path: "C:/Restore"

Backup name: "MyShareBackup"

The restored file will be of the following name:

C:\Restore\MyShareBackup\winserver3@9090\winserver3@9090_sites_first-No.1site\winserver3@9090_sites_first-No.1site.dat

Note: Restore file for a site collection will have ".dat" extension

Restoring *.dat file to the actual site-collection in a production environment

Step 1- Open Command prompt and Set path:

• Open command prompt and change directory path to the folder where 'STSADM.exe' tool exists.

Default locations of STSADM tool:

For WSS2.0/MOSS2003- "C:\Program Files\Common Files\Microsoft Shared\web server extensions\60\BIN\" folder.

For WSS3.0/MOSS2007- "C:\Program Files\Common Files\Microsoft Shared\web server extensions\12\BIN\" folder.

For MS SharePoint 2010- "C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\BIN\" folder.

Step 2- Restore *.dat to site-collection:

The restored ‘*.dat’ file can be restored to a site-collection in two strategies:

Note: Read caution before proceeding with the restore process.

Restore strategy 1- Restore to same site-collection which is active or deleted:

• Enter following command in command prompt:

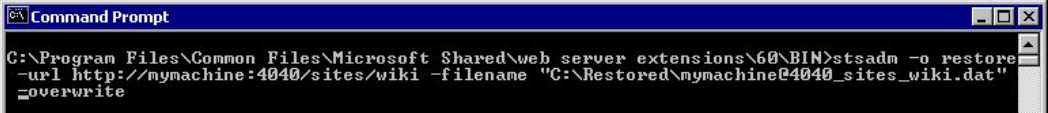

stsadm.exe -o restore -url <Site_Collection_URL> -filename <Backup_File_Name> -overwrite

Where <Site_collection_URL> is the name of site-collection in which data will be restored.

<Backup_File_Name> is the ‘*.dat’ file name to be restored, provided with its path.

Note:

• If there is an active site of the same name, then the above command execution will overwrite existing site-collection completely. (i.e) It will replace sub-sites, contacts, events, documents etc.,
• If the site is deleted already, executing above command will restore the site to the state at which it is backed up.

Restore strategy 2- Restore to a non-existing/new site-collection:

• Step 1- Create Site:
• Enter following command in command prompt:

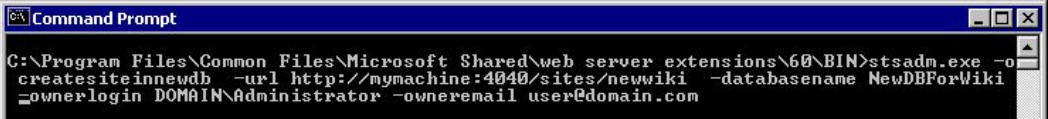

stsadm.exe -o createsiteinnewdb -url <New_Site_Collection_URL> -databasename <New_Database_Name> -ownerlogin <Site_Collection_Owner> -owneremail <Email_Of_Site_Collection_Owner>

Where <New_Site_Collection_URL> is the name of site you wish to process restore.

<New_Database_Name> is the new database to be created.

<Site_collection_owner> is the owner for the site collection to be created.

<Email_of_site_collection_owner> is the owner email of site collection.

The above command will create a new site collection in the new database specified.

• Step 2- Restore site:

Now run following command in command prompt to initiate restore:

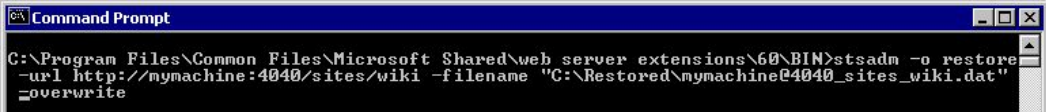

stsadm.exe -o restore -url <New_Site_Collection_URL> -filename <Backup_File_Name> -overwrite

Note:

• Above command will restore site-collection to the newly created site. Try accessing the newly created site once restore completes to confirm restore was successful.
• Restoring default site-collections in WSS2.0/SPS2003 is not permitted and any such attempt is strictly not recommended.
• Do not restore a site-collection to the same portal site under different site-collection which uses the same database as used by source site-collection (From which it is backed up).

Example:

Assume a portal named ‘P1’ with 3 site collection namely S1, S2 and S3 is backed up. Now the user is trying to restore S1 as S4 to the same portal P1.

This will create duplication of the site collection in the same database and is not permitted. Thus the duplicate entry will be deleted, making the restored site inaccessible.

However, restoring a site collection to the same portal can be done in two ways:

• Restore to same site collection ‘S1’(Overwriting).
• Restore to a site collection ‘S4’, but by creating a new database and restoring to it.

Limitations

• Restoring default site-collections in WSS2.0/SPS2003 is not permitted and any such attempt is strictly not recommended.
• Restoring SharePoint 'Central Administration' may not bring original Central Administration's UI and its functionalities.
• Though configured at the server level or as an entire portal site, the backup will only be done at site-collection level. Hence, to restore a portal site on the whole, each site-collection has to be restored one by one using STSADM tool.
