Add Microsoft 365 Organization
To add the Microsoft 365 domain, you can follow the steps below if you have already registered the BDRSuite Microsoft Application in the Microsoft Azure Portal else click here to register.
Log in to your BDRSuite Backup Server web console and navigate to Data Sources-> Add Microsoft 365 organization
Click on the Microsoft 365 Organization tab and you can choose from 3 different ways the Microsoft 365 organization can be added to the BDRSuite Backup Server.
- Authorize BDRSuite for Access using Automatic Process
- Authorize BDRSuite for Access using Manual Process
- Authorize BDRSuite for Access using PowerShell Scripts
Add Microsoft 365 Organization Account as a Data Source and Authorize using Automatic Process

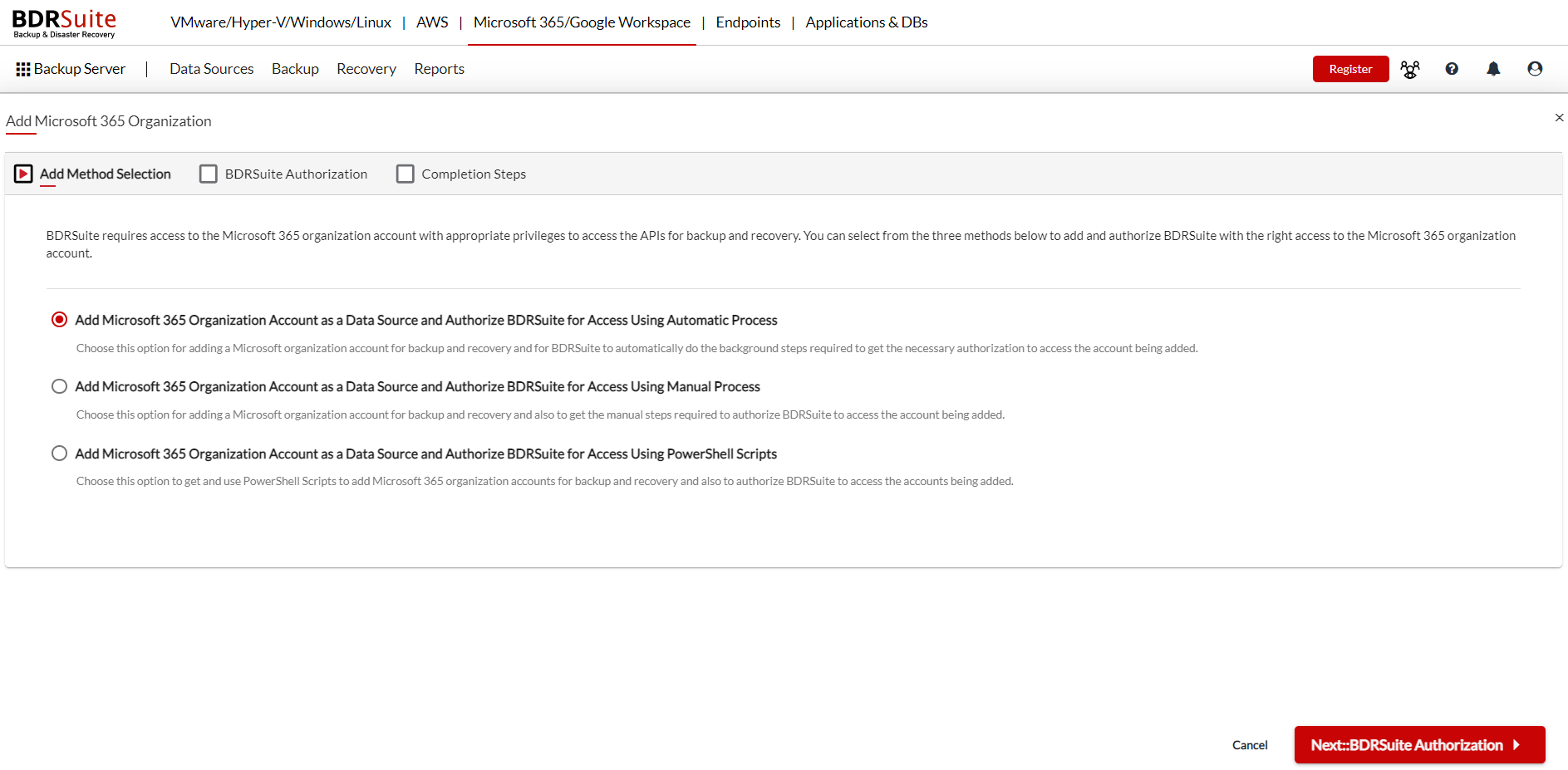

Add Method Selection
Choose this option and click Next.
BDRSuite Authorization
A one-time authorization code is generated for Microsoft to validate BDRSuite and thereby allowing access to the Microsoft 365 organization account.

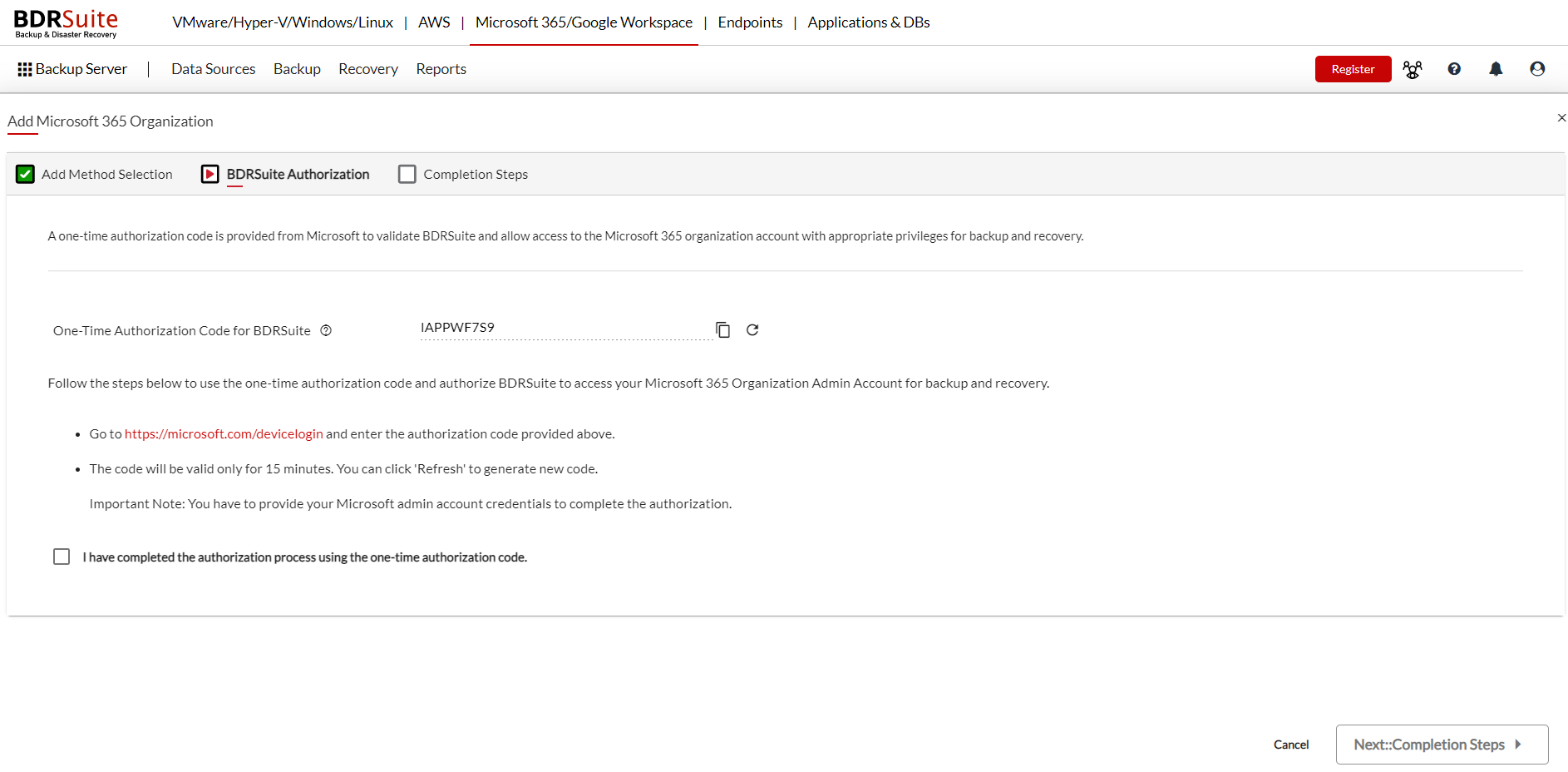

Copy the One-Time Authorization Code for BDRSuite and click on the provided link and it will take you to your Microsoft 365 accounts page.

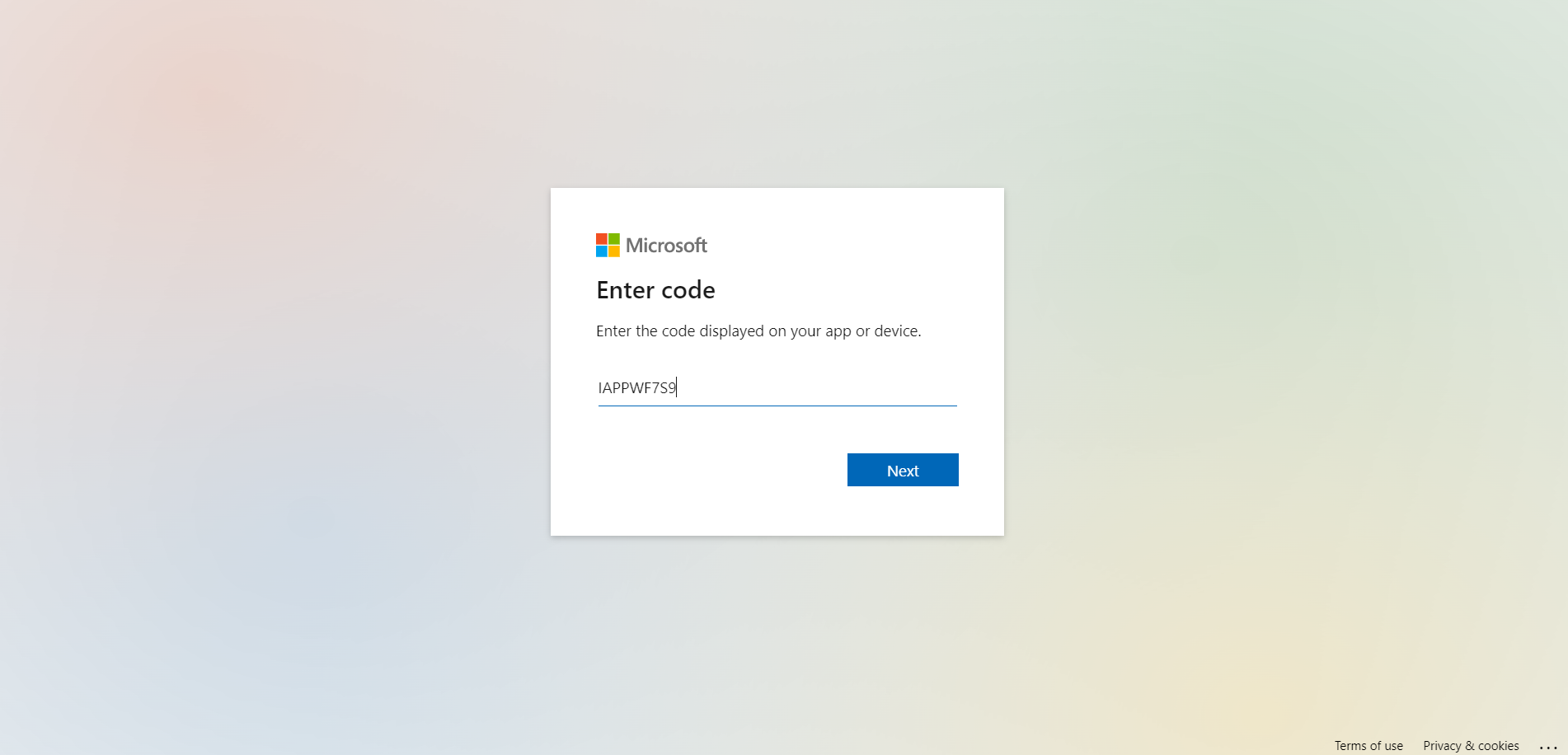

Enter the copied One-Time Authorization Code for BDRSuite in the given space and click next, on the page which looks as the below image.
You will be taken to the sign in page where you need to provide your Microsoft Admin Account credentials.
|
Note: This is mandatory to complete the authorization process. |
Enter the Email or Phone and click Next.

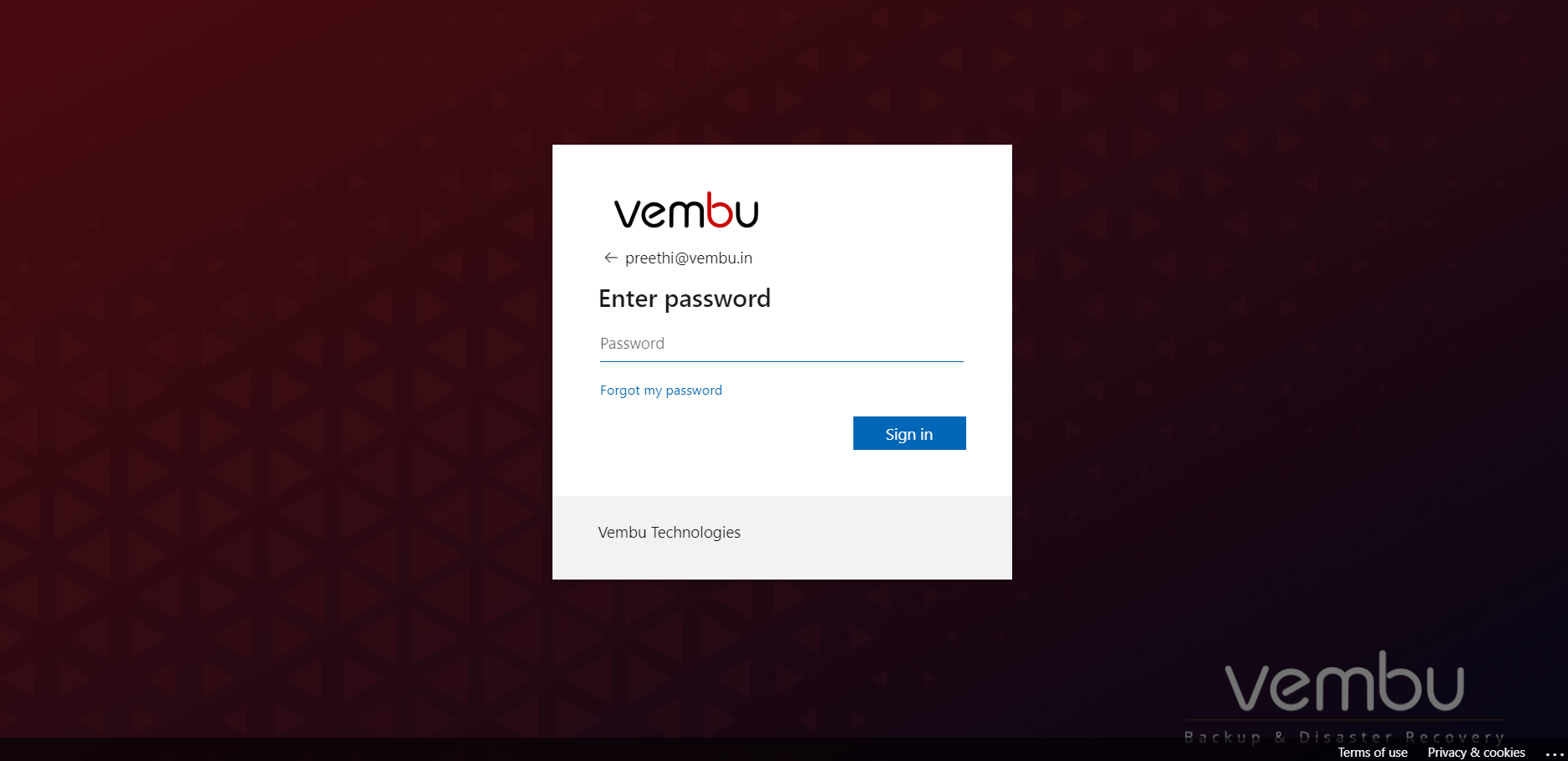

Enter the password and click on Sign in.
Click on Continue.

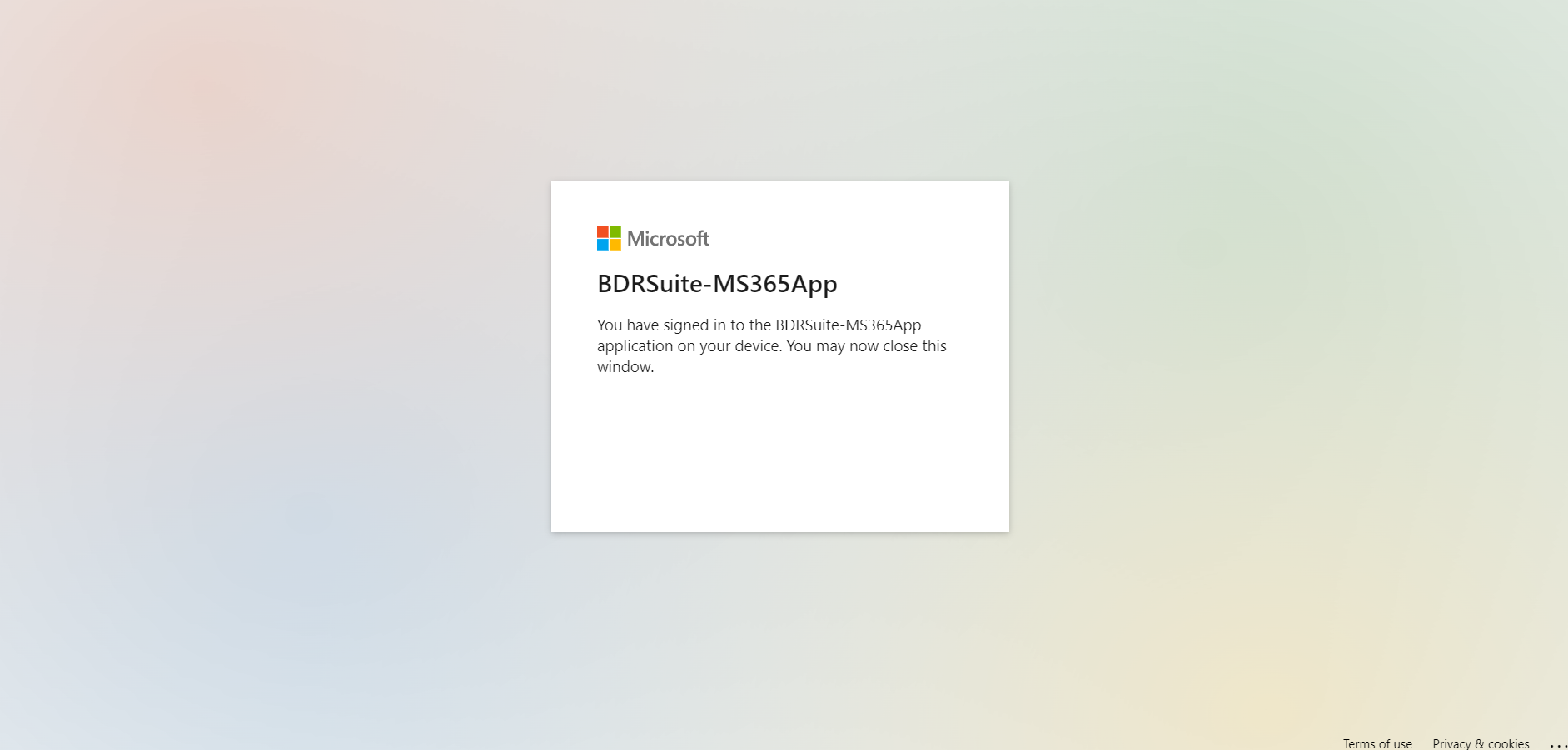

You will be notified with the following message - "You have signed in to the BDRSuite-M365App application on your device. You may now close this window."

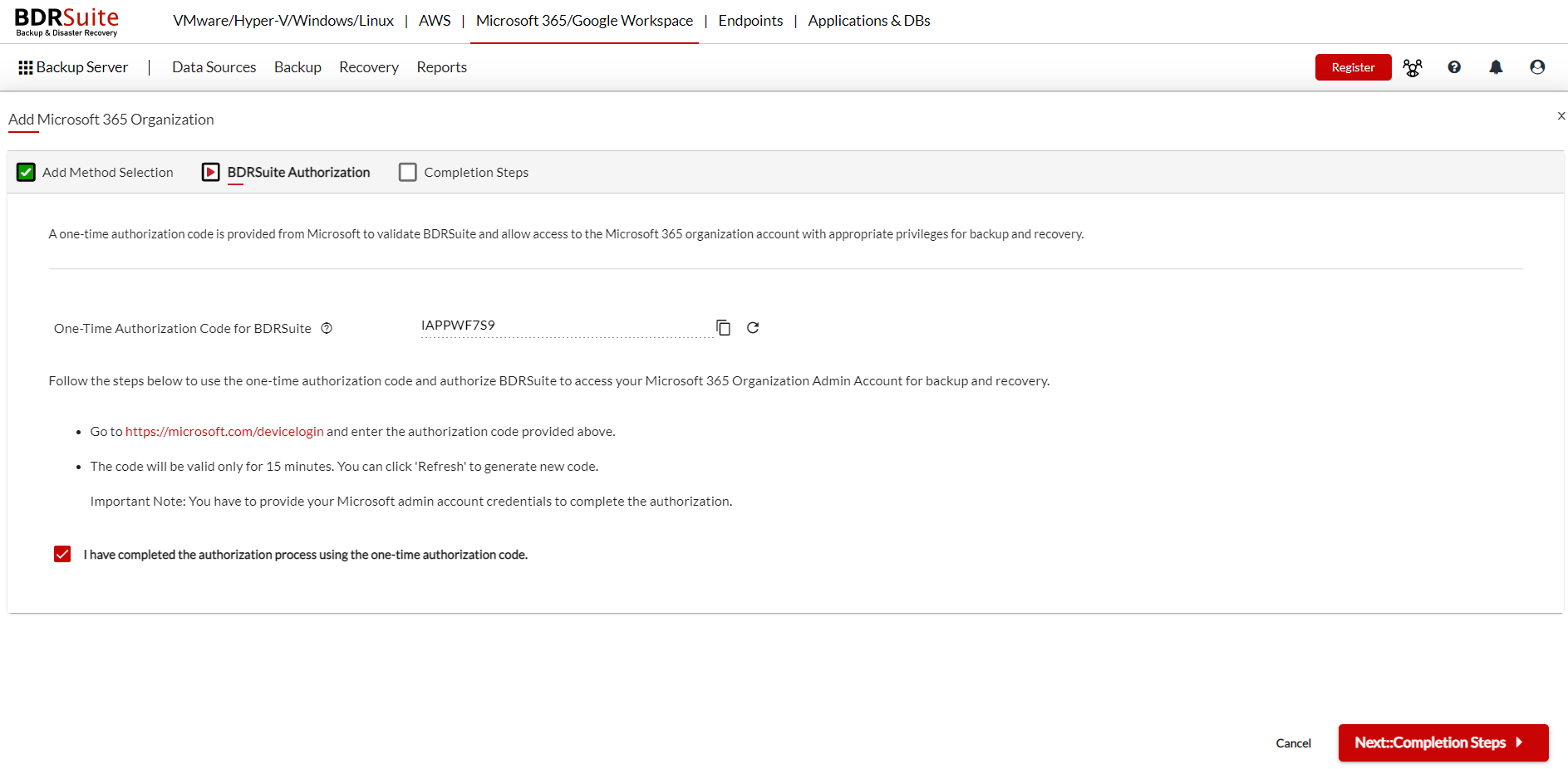

Come back to the BDRSuite Backup Server's BDRSuite Authorization page, check the box and confirm the following statement - I have completed the authorization process using the one-time authorization code.

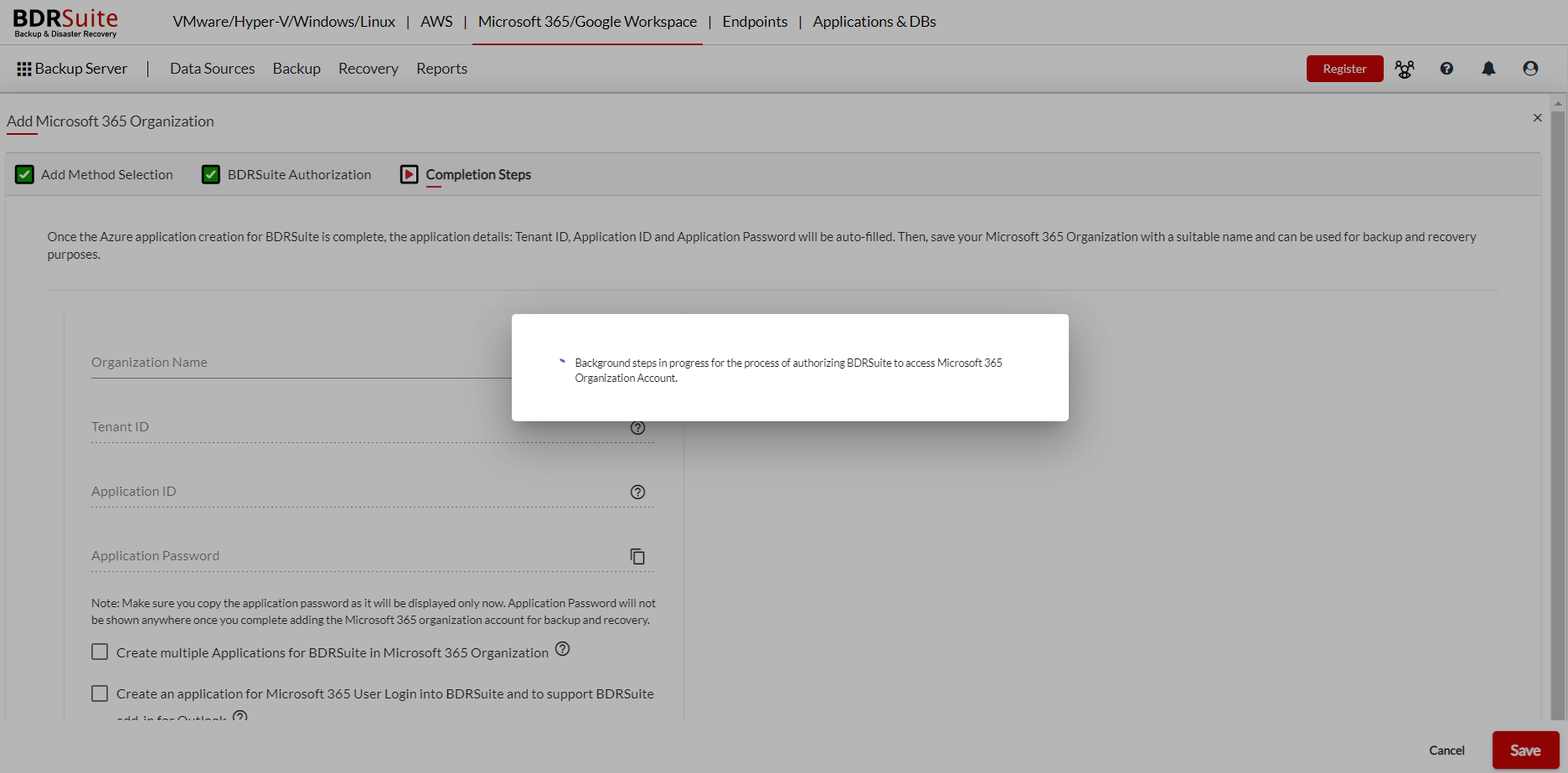

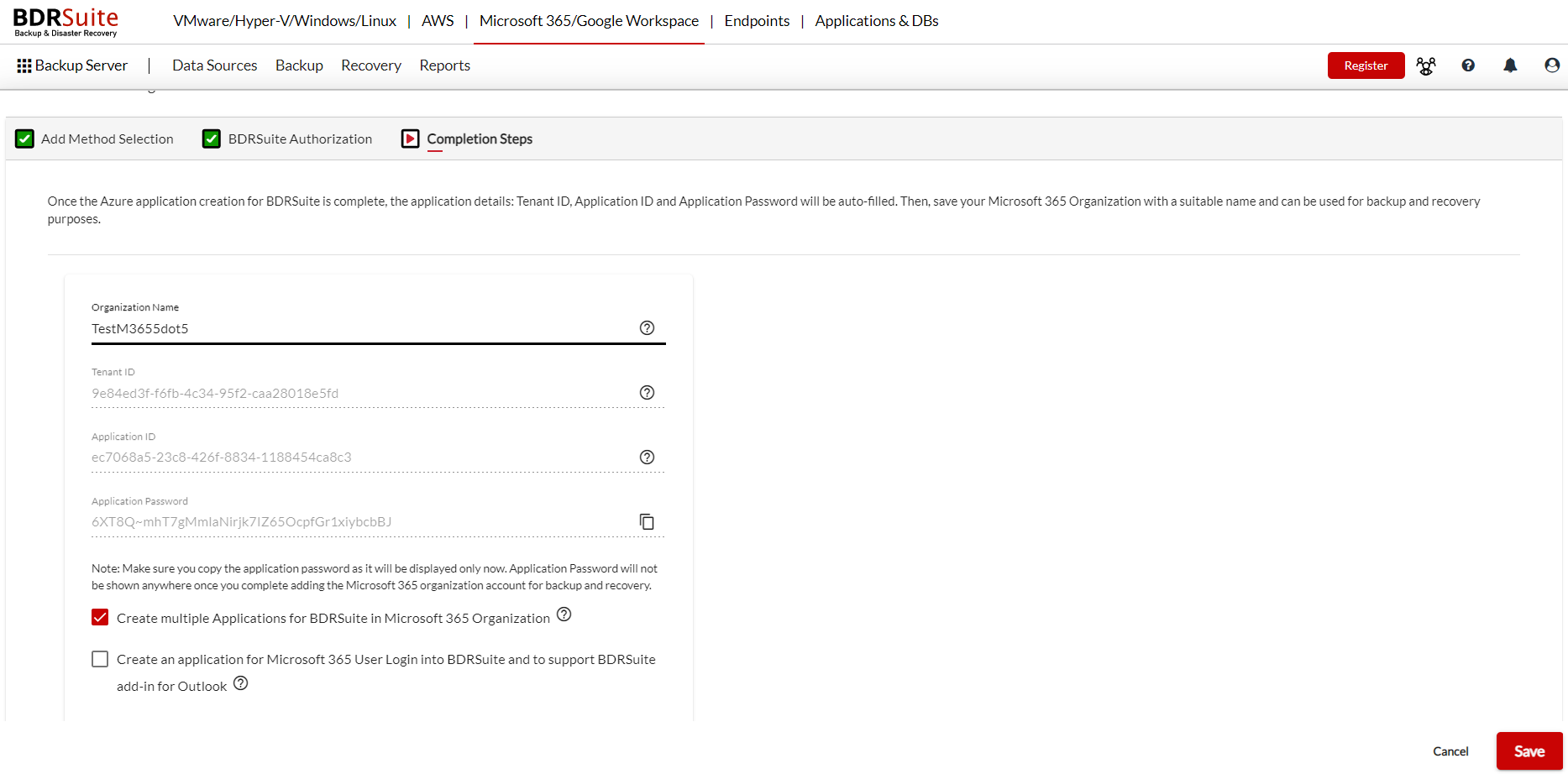

The process to automatically add the Microsoft 365 organization to the BDRSuite Backup Server will be initiated.
1. Organization Name
Enter a name using which you can identify the same.
2. Tenant ID
3. Application ID
4. Application Password
Tenant ID, Application ID, and Application Password will be fetched automatically.
5. Create multiple Applications for BDRSuite in Microsoft 365 Organization
The Application ID that is created in the Azure portal and entered in the above steps will actually manage the write and read request permissions to and from the BDRSuite and the Microsoft 365 Organization. In simpler words, it is the authentication process done using the Application ID.
When a Microsoft 365 Organization is added the BDRSuite will only create one application by default in the Microsoft 365 which will be used for the previously mentioned Authentication process and the same application is used for the backup process as well creating throttle in the following scenario;
A large number of requests across multiple third party applications being generated.
A large number of requests from one particular application, BDRSuite in this case being generated.
Now, this option when enabled will let you create additional Applications(Currently 3).So, totally 4 Applications can be used to fetch the Microsoft Organization details and backup job user's requests will be split among the 4 Applications, thus improving the overall backup performance.
You can click on the checkbox to enable this feature. If you want to enable this feature in an already configured Microsoft 365 Backup Job then you can click on the edit icon of the respective backup job in the List Jobs page. You can also disable it by navigating to the same edit icon and unchecking the box.
|
|
Note: In a scenario where this feature was enabled and then disabled for some reason and if the user wants to again enable this features then two options will be provided for doing the same.
Depending on the user requirement, any of the above option can be chosen. |
6. Create an Application for Microsoft 365 User Login into BDRSuite and to support BDRSuite add-in for Outlook
Enabling this option will create an application for BDRSuite in Microsoft 365 organization which will be used for the following:
- Support to deploy BDRSuite Add-in for Outlook which allows users to easily restore the backed-up mails directly from their Outlook interface.
- Allow Microsoft 365 Organization Users to log into the BDRSuite console with their Microsoft 365 Account credentials.
Add Microsoft 365 Organization as a Data Source and Authorize BDRSuite for Access Using Manual Process
Add Method Selection
Choose this option and click Next.
1. Organization Name
Enter a name using which you can identify the same.
2. Tenant ID
The Tenant ID that was created has to be entered here.
3. Application ID
The generated Application ID has to be entered here.
4. Application Password
Enter the Application Password here.
5. Create multiple Applications for BDRSuite in Microsoft 365 Organization
The Application ID that is created in the Azure portal and entered in the above steps will actually manage the write and read request permissions to and from the BDRSuite and the Microsoft 365 Organization. In simpler words, it is the authentication process done using the Application ID.
When a Microsoft 365 Organization is added the BDRSuite will only create one application by default in the Microsoft 365 which will be used for the previously mentioned Authentication process and the same application is used for the backup process as well creating throttle in the following scenario;
A large number of requests across multiple third party applications being generated.
A large number of requests from one particular application, BDRSuite in this case being generated.
Now, this option when enabled will let you create additional Applications(Currently 3).So, totally 4 Applications can be used to fetch the Microsoft Organization details and backup job user's requests will be split among the 4 Applications, thus improving the overall backup performance.
You can click on the checkbox to enable this feature. If you want to enable this feature in an already configured Microsoft 365 Backup Job then you can click on the edit icon of the respective backup job in the List Jobs page. You can also disable it by navigating to the same edit icon and unchecking the box.
| |
Note: In a scenario where this feature was enabled and then disabled for some reason and if the user wants to again enable this features then two options will be provided for doing the same.
Depending on the user requirement, any of the above option can be chosen. |
6. Create an Application for Microsoft 365 User Login into BDRSuite and to support BDRSuite add-in for Outlook
Enabling this option will create an application for BDRSuite in Microsoft 365 organization which will be used for the following:
- Support to deploy BDRSuite Add-in for Outlook which allows users to easily restore the backed-up mails directly from their Outlook interface.
- Allow Microsoft 365 Organization Users to log into the BDRSuite console with their Microsoft 365 Account credentials.
Add Microsoft 365 Organization Account as a Data Source and Authorize BDRSuite for Access Using PowerShell Scripts

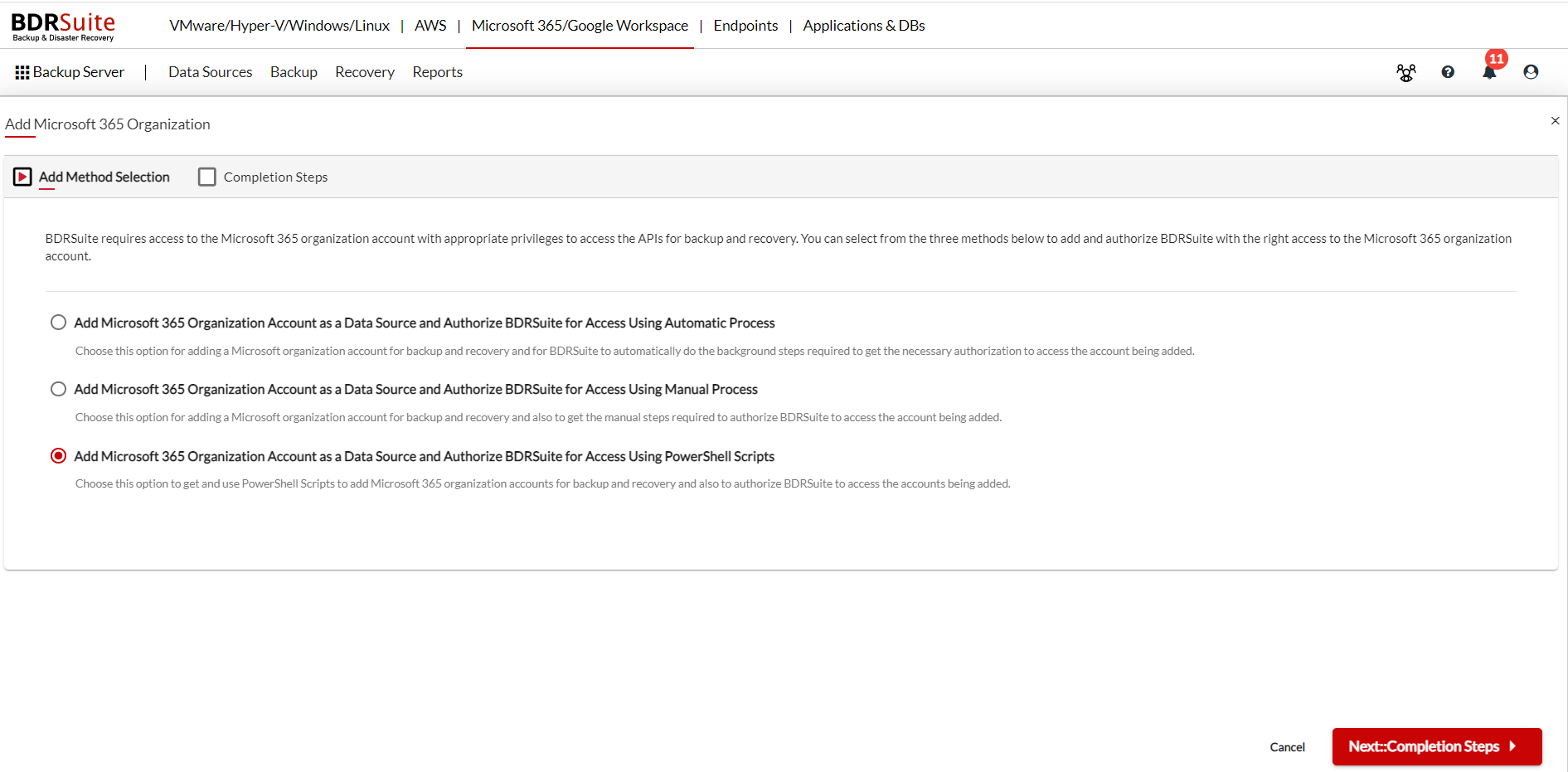

Add Method Selection
Choose this option and click Next.

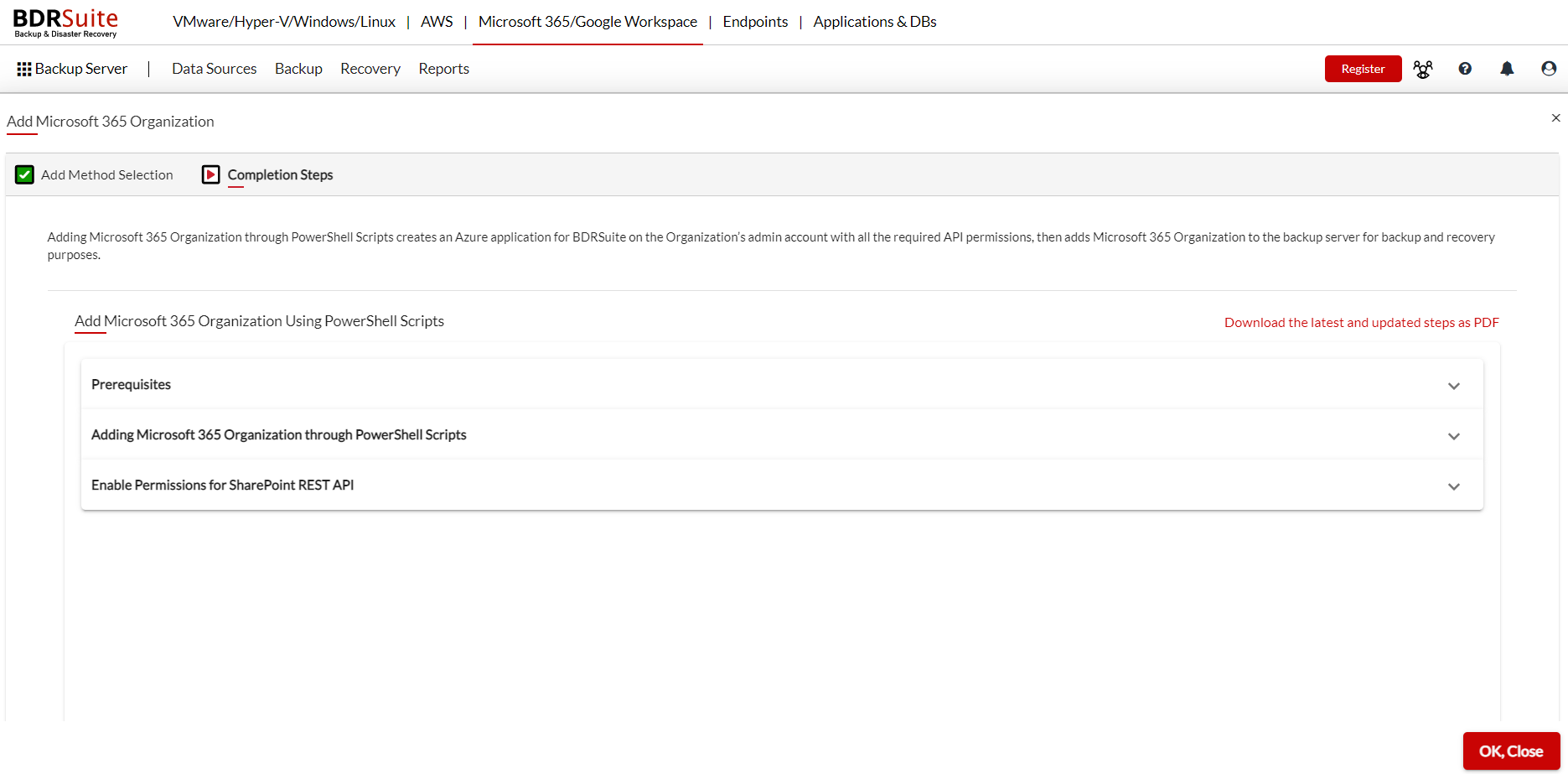

Check the perquisites and you can add the Microsoft 365 organization to the BDRSuite Backup Server through PowerShell Script by following the steps mentioned in the BDRSuite Backup Server UI and also enable permission for SharePoint REST API, the steps for which are available in the BDRSuite Backup Server UI.

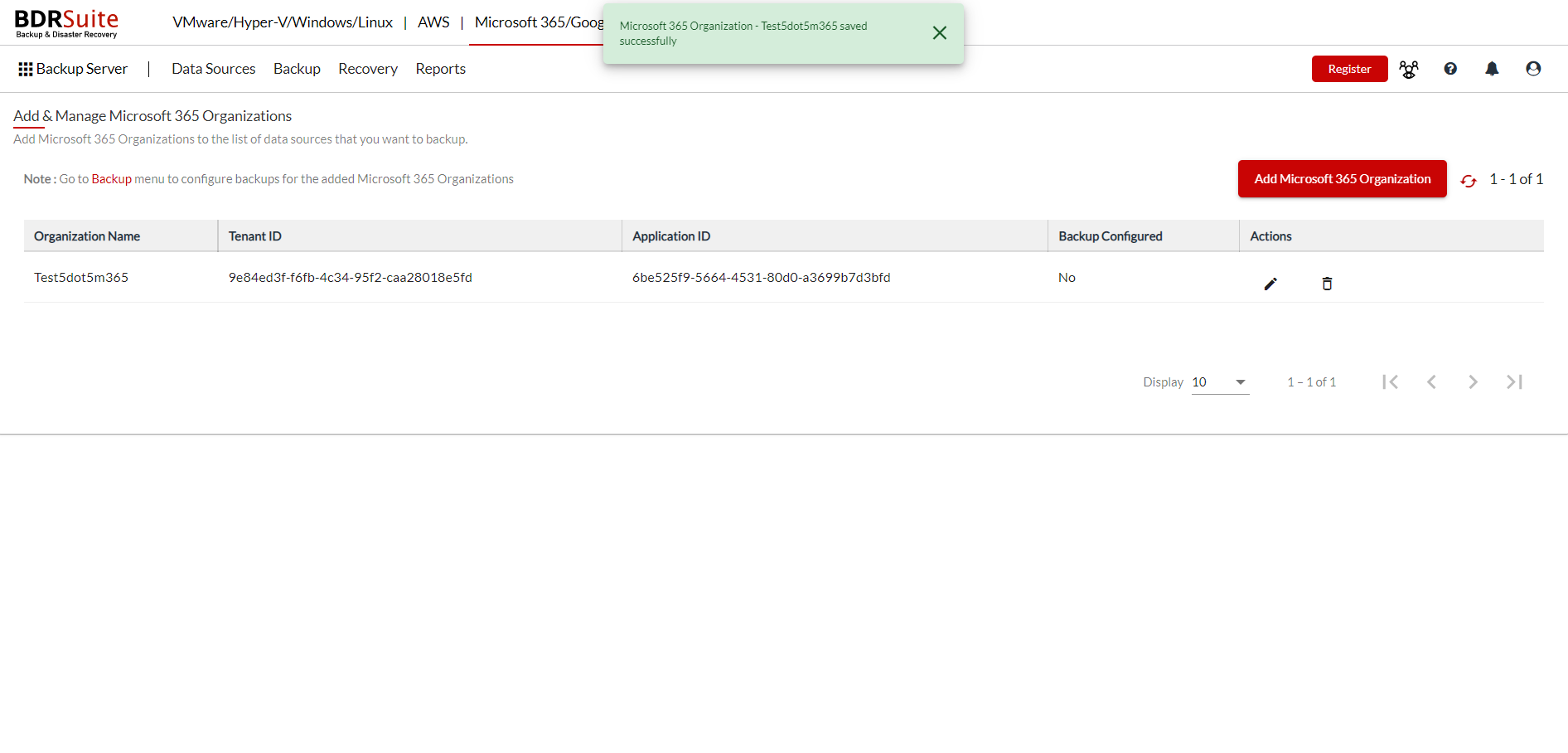

Microsoft 365 Organization added through any of the above mentioned methods to configure backup for Microsoft 365 are listed on the following page.
